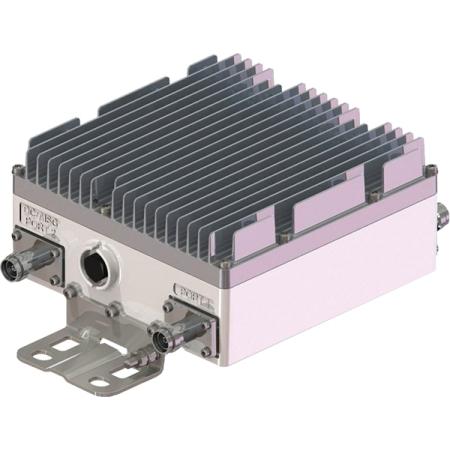

Commscope CHB626-43

CommScope's CHB626-43 617 – 2700 MHz UltraBand hybrid combiner in gray. High power handling. 3.1 dB, 3000 W input power, PEP, 150 W input power, RMS, 22 dB typical return loss. Ideal for combining carriers of any technology combination (LTE, UMTS, CDMA, GSM, etc.) independent of guard band restrictions.

DC-AISG passing capability from Port 2 to Common Port. 4.3-10 Female connector for improved PIM performance and size reduction. This hybrid combiner has an operating temperature of -40 degrees F to +149 degrees F under ingress protection IEC 60529:2001, IP67 test method.

Mounts to a pole or a wall. Mounting hardware included. Designed, manufactured and/or distributed under ISO 9001:2015
