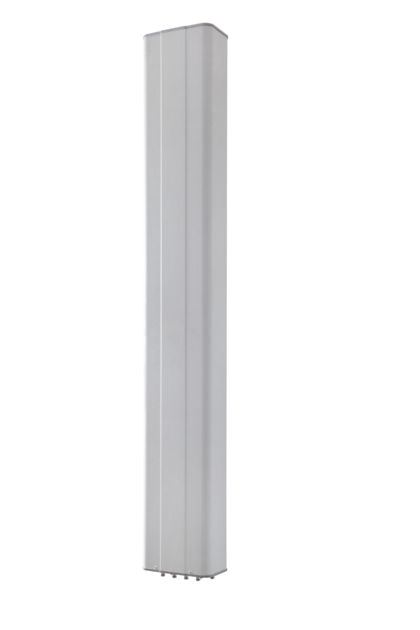

Commscope JAHH-65C-R3B-V3
Regular price
$4,37395
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
CommScope
Model #
JAHH-65C-R3B-V3
Product Description
COMMSCOPE's JAHH-65C-R3B-V3 multi-band antenna, two (2) 698 – 787, two (2) 824 – 894 and four (4) 1695 – 2360 MHz, 65 deg. horizontal beamwidth, internal RETs and low bands have diplexers. Internal SBTs on first LB (Port 1) and first HB (Port 5).
- Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable.
- One RET for 700 MHz, one RET for 850 MHz, and one RET for both high bands to ensure same tilt level for four (4) receivers or four (4) MIMO.
- Internal filter on low band and interleaved dipole technology providing for attractive, low wind load mechanical package.
- Separate RS-485 RET input and output for low and high band.
Item Length
95.984 in
Item Weight
13.78 lb
Gain dBi (dBi)
15.7 dBi, 16.1 dBi, 18.2 dBi, 18.8 dBi, 19.1 dBi, 19.5 dBi
Polarization
+/- 45 Degrees
RF Connectors
4.3-10 Female
Specific Frequency
698-803 MHz, 824-894 MHz, 1695-1880 MHz, 1850-1990 MHz, 1920-2200 MHz, 2300-2360 MHz
Maximum Rated Wind Velocity
150 mile/h

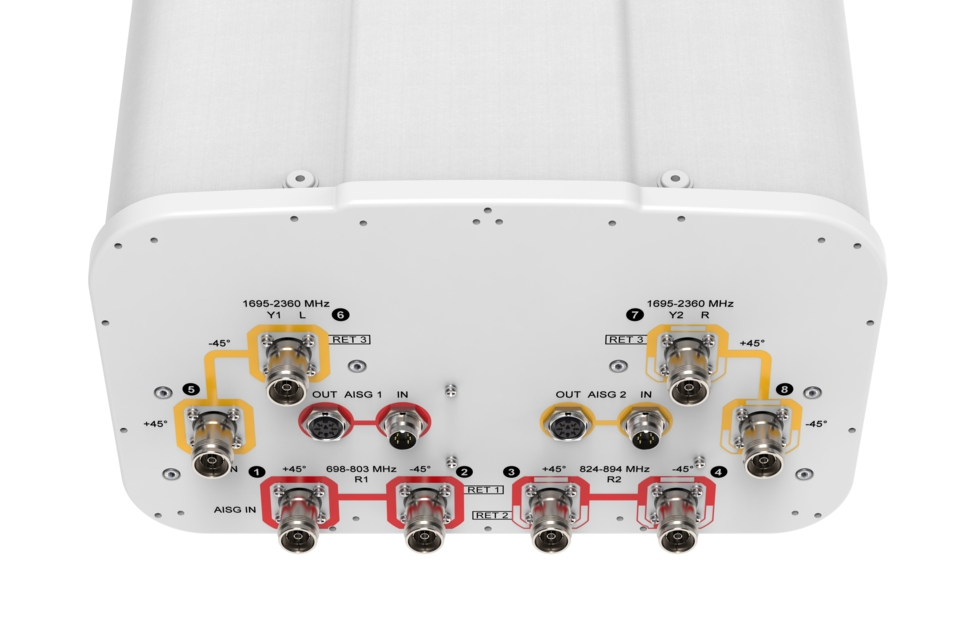

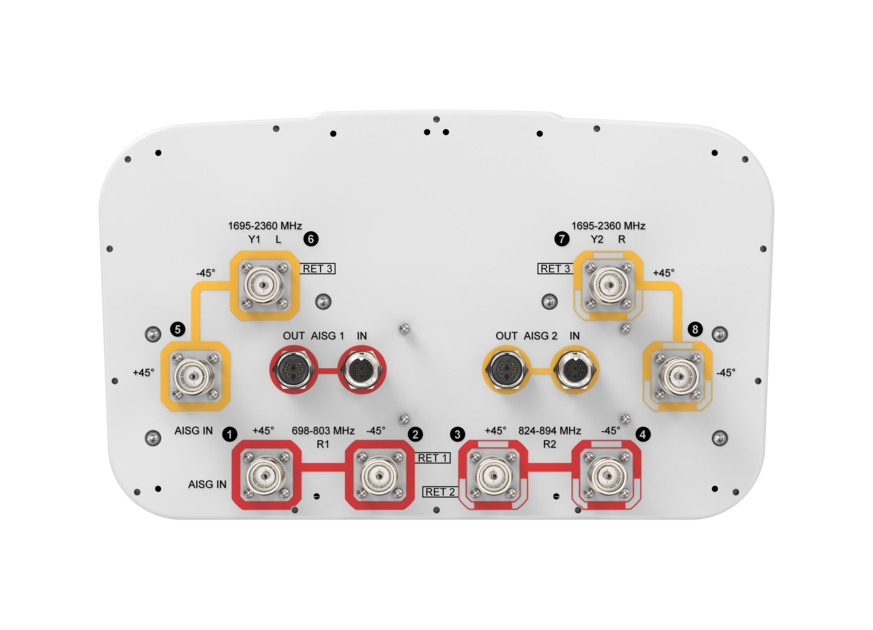

Connector Placement
Bottom
Frequency Band
LTE Multi-Band
