Commscope H-3-UW-N-AI6

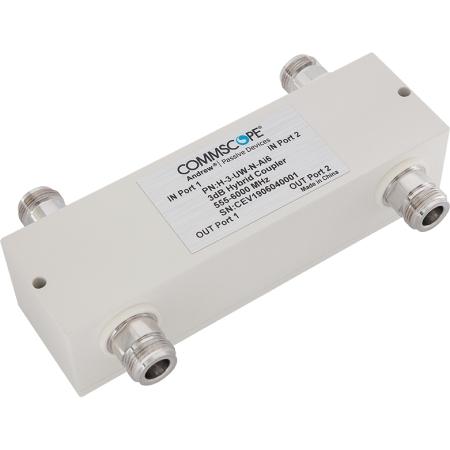

CommScope's H-3-UW-N-Ai6 555 – 6000 MHz low PIM air dielectric hybrid coupler in white. N Female, 50 Ohm, 3.1 dB, 1.25 VSWR. 1 kW peak power, 200 W average power, and 200 W reflected power, maximum. The coupling nut proof torque is 4.5 N-m | 39.828 in lb.

This hybrid coupler has an operating temperature of -31 degrees F to +185 degrees F with a relative humidity up to 100 percent under the IEC 60529:2001, IP67 test method.

Used for indoor and outdoor applications. Designed, manufactured and/or distributed under ISO 9001:2015
