Commscope CHB626-43-2X

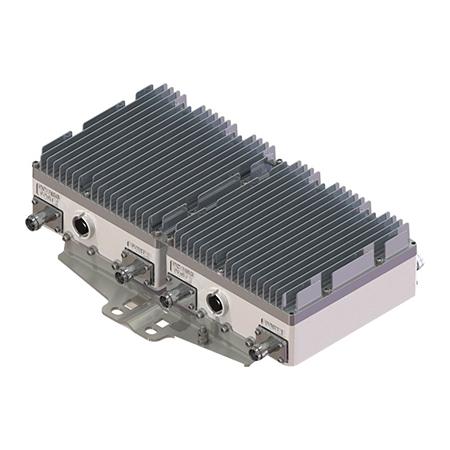

CommScope's CHB626-43-2X 617 2700 MHz UltraBand twin hybrid combiner in gray. 3.1 dB, 3000 W input power, PEP, 150 W input power, RMS, 22 dB typical return loss. Ideal for combining carriers of any technology combination (LTE, UMTS, CDMA, GSM, etc.)

Independent of guard band restrictions along with Integrated low PIM load allowing for simplified installation. DC-AISG passing capability from Port 2 to Common Port. 4.3-10 Female connectors for improved PIM performance and size reduction.)

This hybrid combiner has an operating temperature of -40 degrees F to +149 degrees F under ingress protection IEC 60529:2001, IP67 test method. Mounts to a pole or a wall. Mounting hardware included. Designed, manufactured and/or distributed under ISO 9001:2015)
