Description
Description
Manufacturer
CommScope
Model #
L4HR-D
Product Description

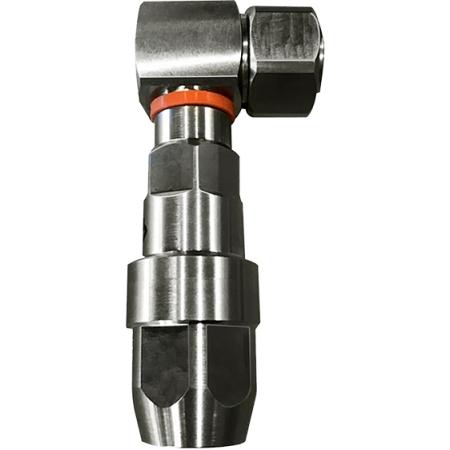

CommScope's L4HR-D 4.3-10 Male right angle connector for 1/2 in AL4RPV-50, LDF4-50A, HL4RPV-50 cable. 0 - 8800 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Silver plated inner contact. Clamp outer attachment, Captivated inner attachment. Meets RoHS standards and is designed, manufactured and/or distributed under ISO 9001:2015
Maximum VSWR
1.03:1, 1.07:1
RF Connector
4.3-10 Male
RF Impedance
50 Ohms
RF Connector Body Style
Right Angle
Body Material
Tri-Metal Plated Brass
Center Pin Type
Captivated
Fits
1/2"
Frequency Range
0-8800 MHz
Outer Contact Attachment Type
Clamp
