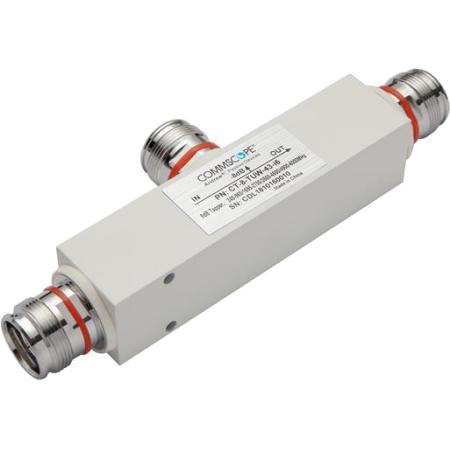

Commscope CT-8-TUW-43-I6

CommScope's CT-8-TUW-43-i6 340 - 6000 MHz tapper in white. 4.3-10 Female, 50 Ohm, 8 dB with operating frequency bands of 340 - 960 MHz, 1695 - 2700 MHz, 3500 - 4500 MHz, and 4900 - 6000 MHz. 3 kW peak power, 300 W average power, and 200 W and peak power maximum. The coupling nut proof torque is 7 N-m | 61.955 in lb.

This tapper has an operating temperature of -31 degrees F to +185 degrees F with relative humidity up to 100 percent under the ingress protection IEC 60529 2001, IP67 test method.

Used for indoor and outdoor applications. Compliant with RoHS and REACH-SVHC standards. Designed, manufactured and/or distributed under ISO 9001:2015
