Description
Description
Manufacturer
CommScope
Model #
NHH-65C-R2B
Product Description
COMMSCOPE's NHH-65C-R2B six-port sector antenna, two (2) 698 – 896 and four (4) 1695 – 2360 MHz, 65 deg. HPBW, two (2) RETs. Both high bands share the same electrical tilt.
Item Width
11.9 in
Item Height
7.1 in
Item Length
96 in
Item Weight
51.6 lb
Horizontal Beamwidth
65 deg, 62 deg, 74 deg, 66 deg, 62 deg, 59 deg
Gain dBi (dBi)
16 dBi, 16.1 dBi, 17.3 dBi, 17.7 dBi, 18.3 dBi, 18.2 dBi
Maximum Power (W)
400
RF Connectors
7/16 DIN Female, 7/16 DIN Female, 7/16 DIN Female, 7/16 DIN Female, 7/16 DIN Female, 7/16 DIN Female
Specific Frequency
698-806 MHz, 806-896 MHz, 1695-1880 MHz, 1850-1990 MHz, 1920-2200 MHz, 2300-2360 MHz
Maximum Rated Wind Velocity
149.75 mile/h

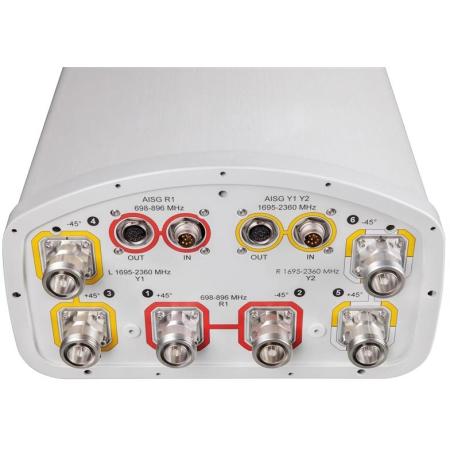

Connector Placement
Bottom
Frequency Band
LTE Multi-Band
