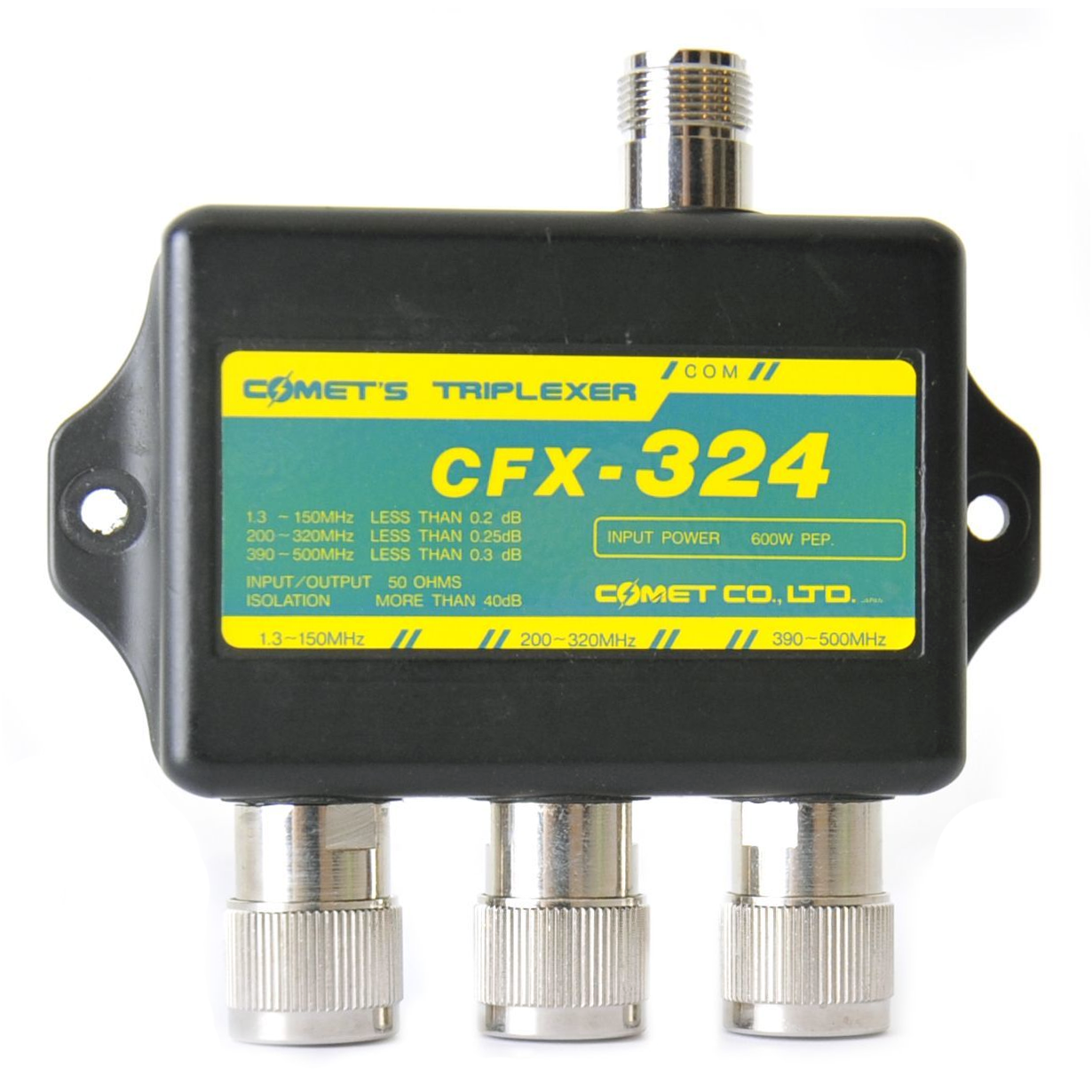

Comet CFX-324B
MPN CFX-324BSKU 1634Product type Triplexer
Regular price
$9995
Unit price
Key Specifications
- Multiplexer Frequency
- 1.3-60 MHz, 60-250 MHz, 250-550 MHz
- Connector
- SO-239
- Frequency
- 1.3-150 MHz, 200-320 MHz, 390-500 MHz
Product details
Manufacturer
NCG Comet
Model #
CFX-324B
Product Description
Triplexer
Band Pass
1.3-150MHz
200-320MHz
390-500MHz
Insertion Loss
0.2dB
0.25dB
0.3dB
Maximum Power (Watts)
600w PEP
600w PEP
600w PEP
Isolation
40dB
Connectors Output:
SO-239
Low In: PL-259
Mid In: PL-259
High In: PL-259
Warranty
1 Year
