Manufacturer
CommScope
Model #
F1HM-D
Product Description

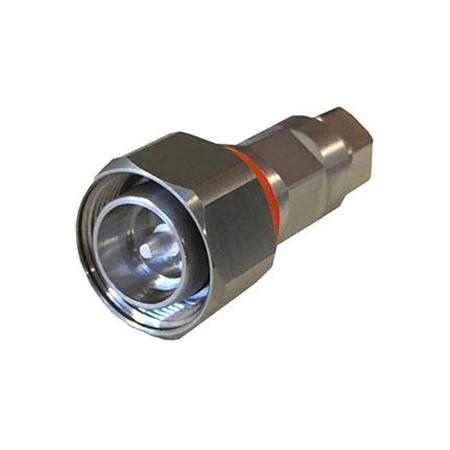

CommScope's F1HM-D 4.3-10 Male straight connector for 1/4 in FSJ1-50A cable. 0 - 12000 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Silver plated inner contact. Clamp outer attachment, Captivated inner attachment. Meets RoHS standards and is designed, manufactured and/or distributed under ISO 9001:2015
Maximum VSWR
1.06:1
RF Connector
4.3-10 Male
RF Impedance
50 Ohms
RF Connector Body Style
Straight
Body
Trimetal Plated
Low PIM
No
Body Material
Tri-Metal Plated Brass
Center Pin Type
Captivated
Fits
FSJ1-50A
Frequency Range
0-12 GHz
Outer Contact Attachment Type
Self-flare
