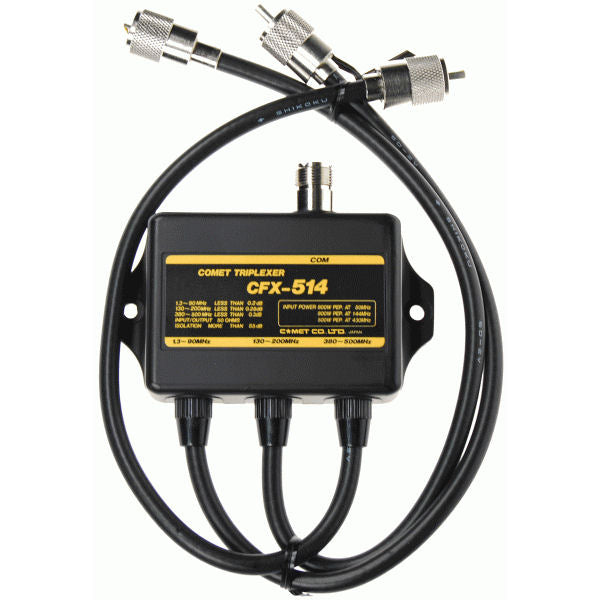

Comet CFX-514
MPN CFX-514SKU 1636Product type Triplexer
Regular price
$8995
Unit price
Key Specifications
- Multiplexer Frequency
- 1.3-60 MHz, 60-250 MHz, 250-550 MHz
- Connector
- SO-239
- Frequency
- 1.3-90 MHz, 130-200 MHz, 380-500 MHz
Product details
Manufacturer
NCG Comet
Model #
CFX-514
Product Description
Triplexer
Band Pass
1.3-90MHz
130-200MHz
380-500MHz
Insertion Loss
0.2dB
0.25dB
0.3dB
Maximum Power (Watts)
1.3-90MHz 800w PEP
130-200MHz 800w PEP
380-500MHz 500w PEP
Isolation
55dB
Connectors Output:
SO-239
Low In: PL-259
Mid In: PL-259
High In: PL-259
Optional Configurations
CFX-514N: Has an N Connector on High In
CFX-5140: Same as CFX-514, but without coax leads
Warranty
1 Year
