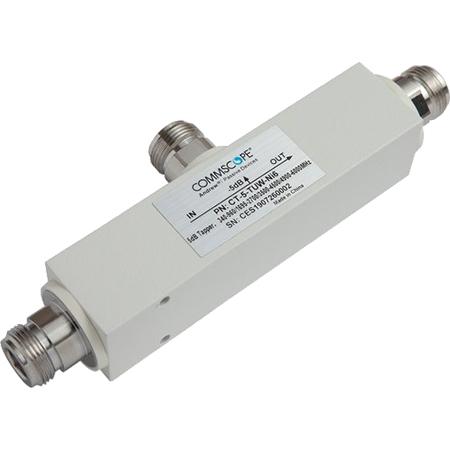

Commscope CT-5-TUW-NI6

CommScope's CT-5-TUW-NI6 340 – 6000 MHz tapper in white. N Female, 50 Ohm, 5 dB with operating frequency bands of 340 – 960 MHz, 1695 – 2700 MHz, 3500 – 4500 MHz, and 4900 – 6000 MHz. 3 kW peak power, 300 W average power, and 200 W reflected power maximum. The coupling nut proof torque is 4.5 N-m | 39.828 in lb.

This tapper has an operating temperature of -31 degrees F to +185 degrees F with relative humidity up to 100 percent under the ingress protection IEC 60529:2001, IP67 test method.

Used for indoor and outdoor applications. Compliant with RoHS standards and is designed, manufactured and/or distributed under ISO 9001:2015
