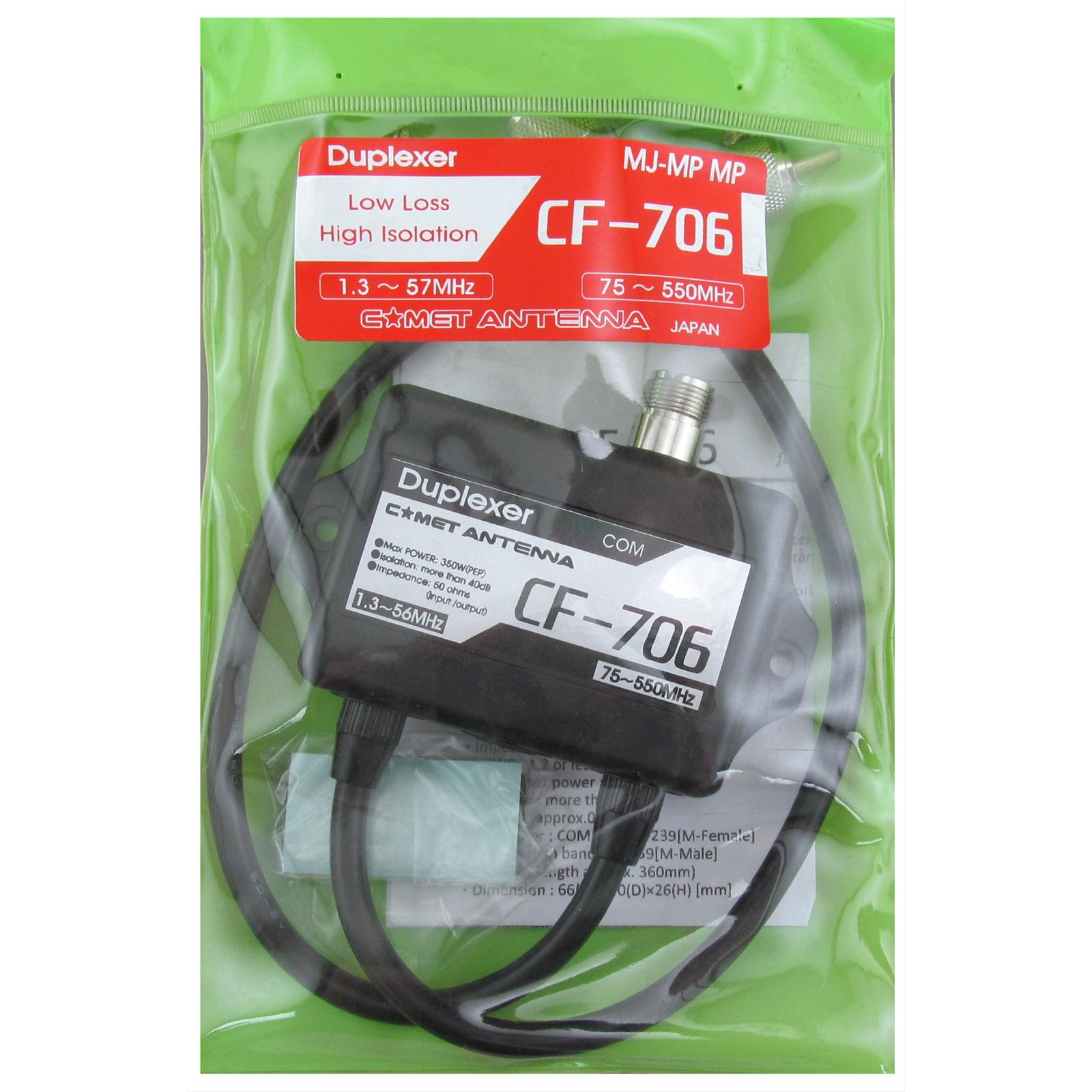

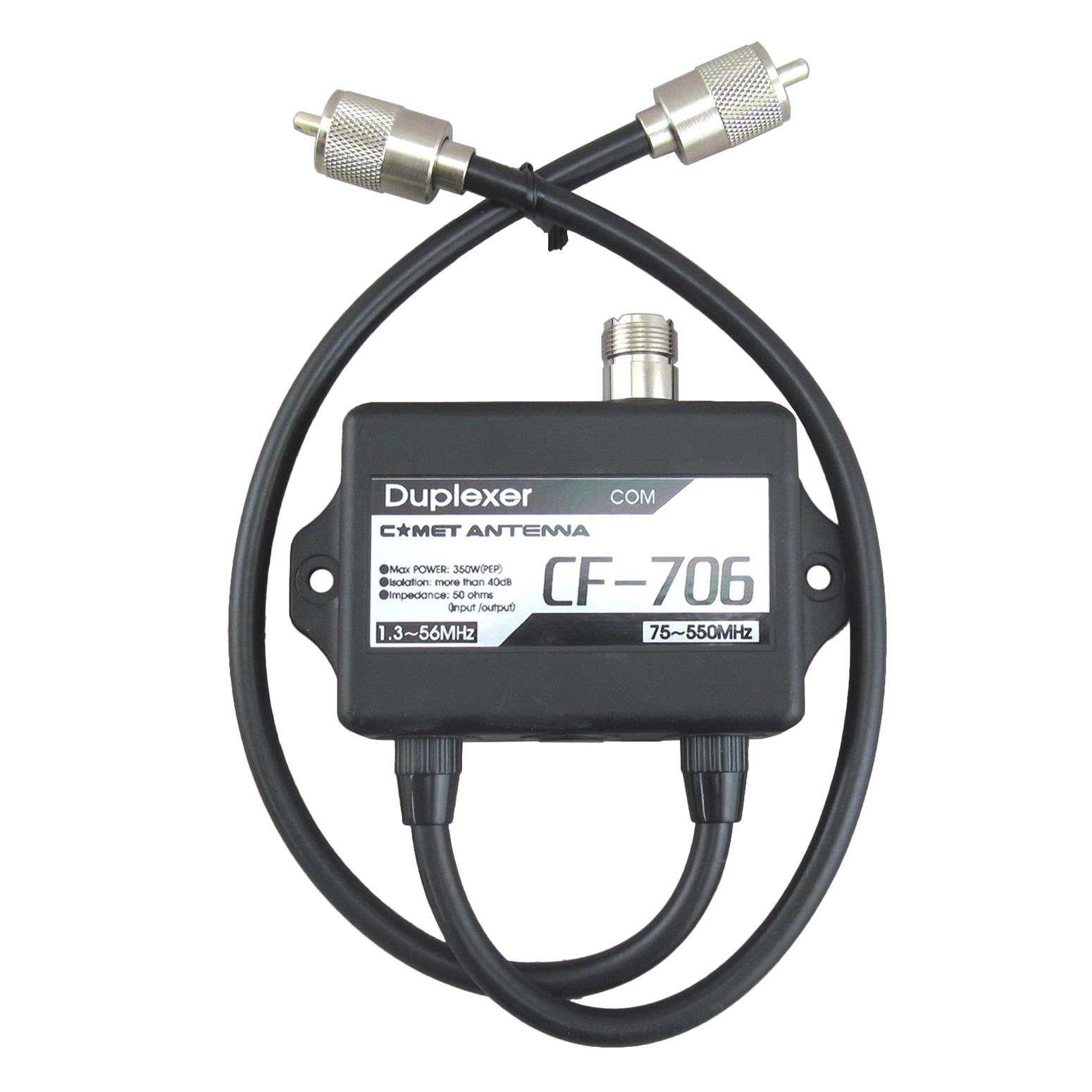

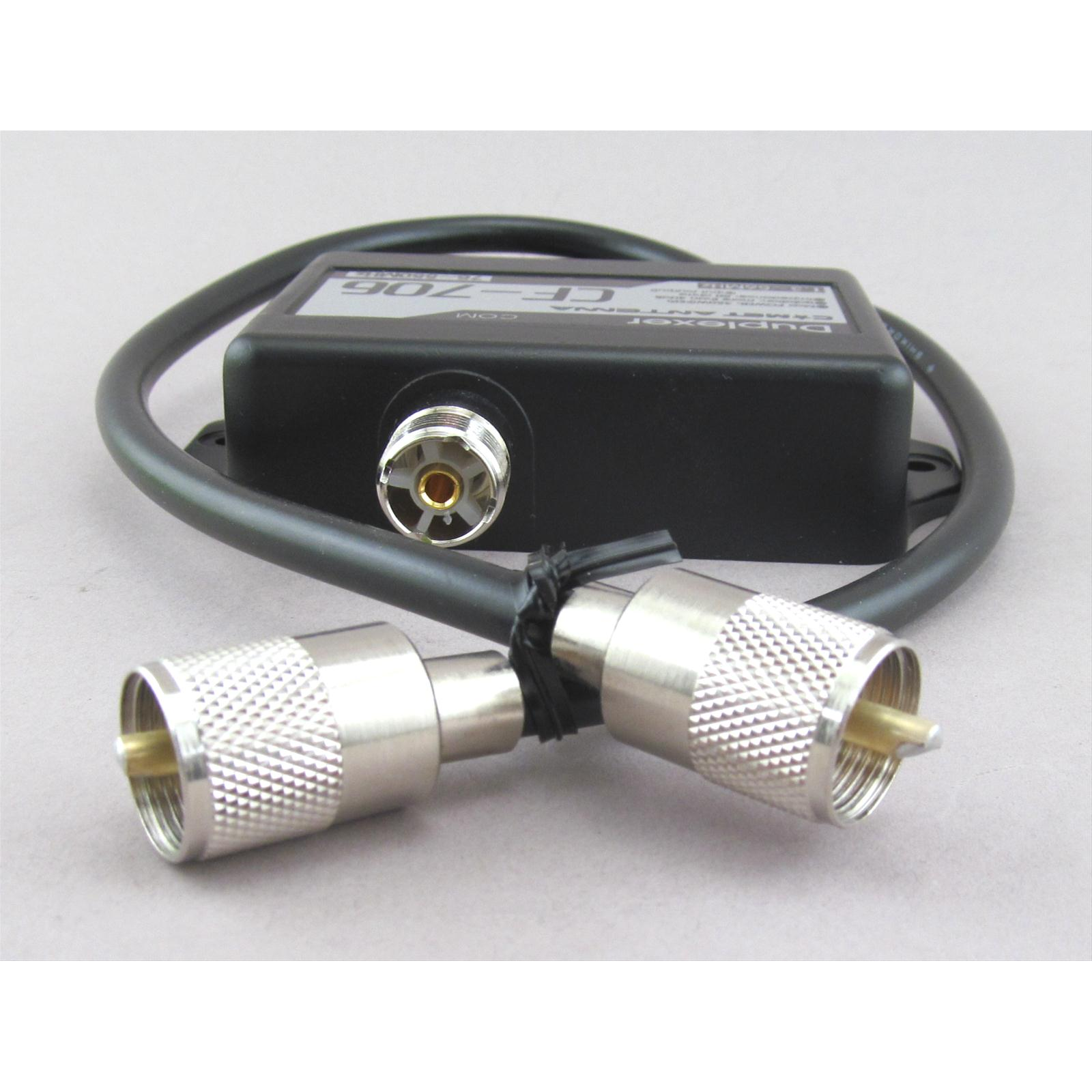

Comet CF-706A
MPN CF-706ASKU 1646Product type Diplexer
Regular price
$8995
Unit price
Key Specifications
- Multiplexer Frequency
- 1.3-60 MHz, 60-250 MHz, 250-550 MHz
- Connector
- SO-239
- Frequency
- 1.3-57 MHz, 75-550 MHz
Product details
Manufacturer
NCG Comet
Model #
CF-706A
Product Description
HF/6M/75MHz-70cm Duplexer
Band Pass
1.3-57MHz
75-550MHz
Insertion Loss
0.4dB
0.4dB
Maximum Power (Watts)
350W PEP
Isolation
40dB
Configurations
Output: SO-239
Low In: PL-259
High In: PL-259
Warranty
1 Year
