Description
Description
Manufacturer
CommScope
Model #
CDX723AT-DS-T
Product Description

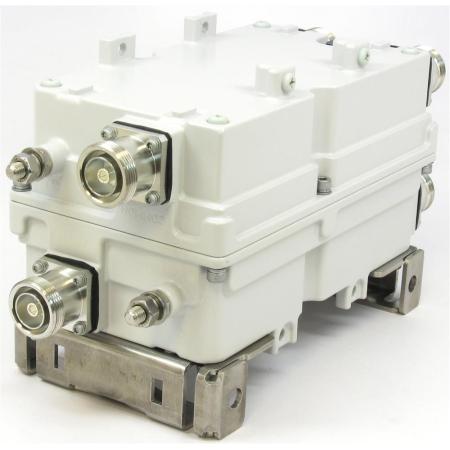

The CommScope CDX723AT-DS-T 698 – 894 MHz / 1710 – 2360 MHz twin diplexer with AISG modem, LOC top. The diplexer features automatic DC switching with DC sense and DC redundancy with dummy current sink. It is stackable to single unit and stackable in multiples with included hardware.
Item Width
8.9 in
Item Height
4.5 in
RF Connectors
7/16 DIN Female
Item Length
4.9 in
Frequency Range
698-894 MHz, 1710-2360 MHz
Nominal Insertion Loss
0.10 dB
Minimum Isolation
60 dB
Average Power Handling
500 W
