Description
Description
Manufacturer
CommScope
Model #
VV-65T-F-V3
Product Description

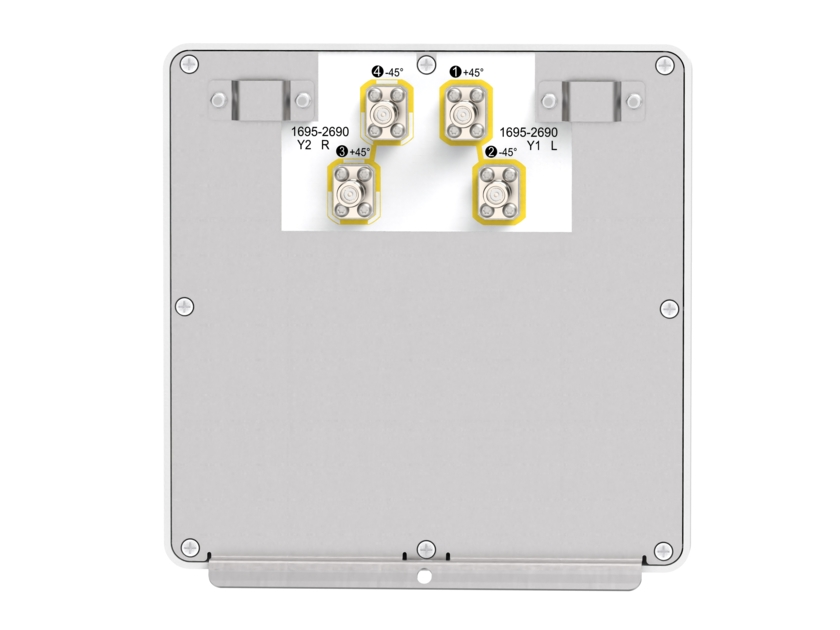

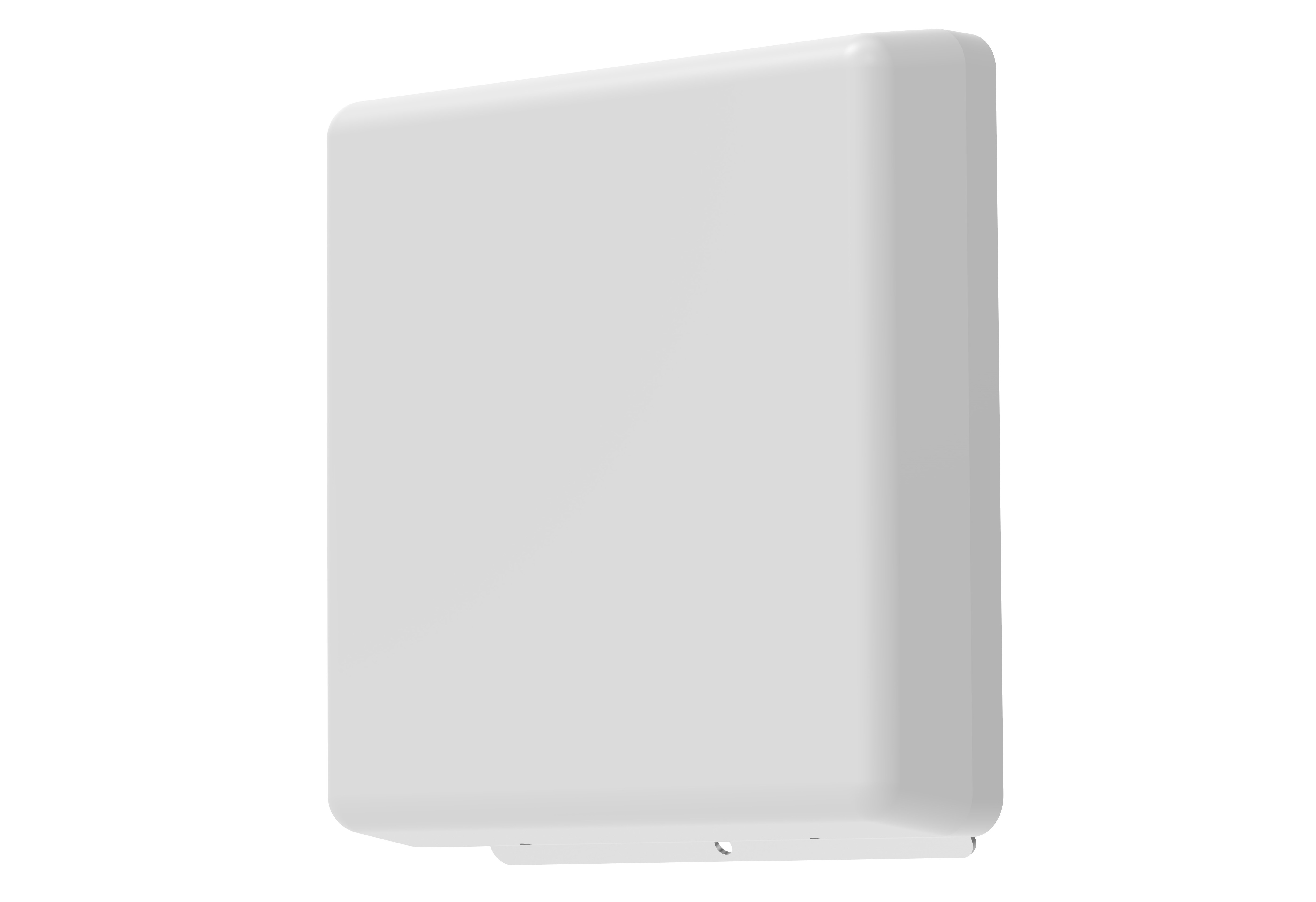

COMMSCOPE 4-port small cell antenna, 4x 1695–2690 MHz, 65° HPBW, fixed electrical tilt
Horizontal Beamwidth
1.5, 1.7, 2.6, 2.9, 4.3
Gain dBi (dBi)
18.3, 18.7, 19, 19.2, 19.3
Maximum Power (W)
10
Polarization
Cross
RF Connectors
4.3/10 Female
Specific Frequency
1695-1880, 1850-1990, 1920-2200, 2300-2500, 2500-2690
Vertical Beamwidth (Deg)
4.1, 4.3, 4.9, 5.2, 5.6
Maximum VSWR
14:1
Variable Electrical Downtilt
2-12
Frequency Band
LTE Multi-Band
