Commscope TD-850AB-LTE15-43
Regular price
$3,90095
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
CommScope
Model #
TD-850AB-LTE15-43
Product Description

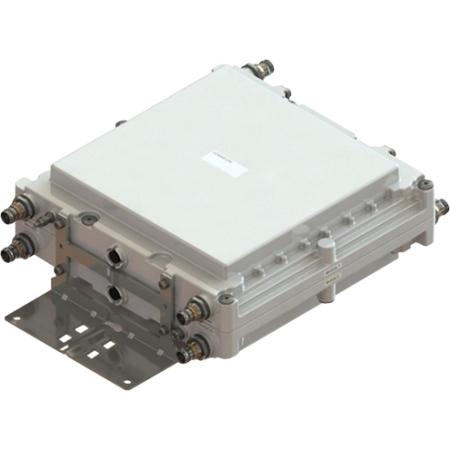

COMMSCOPE's TD-850AB-LTE15-43 twin in-band diplexer A 850 / 700 plus 850 AB LTE, DC sense.
- Enables LTE carrier to share the RF path with other CDMA/EVDO services
- LTE port supports the use of dual band 700/850 radios or diplexed radio ports
- Optimized for 5MHz LTE carrier on A-Block CH 2435 and 10MHz LTE carrier on B-Block CH 2560
- Supports 3 CDMA/EVDO carriers F1(283), F2(242), and F3(201)
- Narrow guard band to maximize utilization of licensed spectrum
- Automatic dc switching with dc sense
Item Length
23.5 in
Item Weight
16.3 lb
Horizontal Beamwidth
74 deg, 73 deg, 72 deg, 68 deg, 71 deg
Gain dBi (dBi)
13.3 dBi, 13.6 dBi, 13.7 dBi, 14.3 dBi, 14.3 dBi
Maximum Power (W)
300
Polarization
+/- 45 Degrees
RF Connectors
4.3/10 Female
Specific Frequency
1695-1880 MHz, 1850-1990 MHz, 1920-2200 MHz, 2300-2500 MHz, 2500-2690 MHz
Maximum Rated Wind Velocity
150 mile/h
Minimum Front Back Ratio
32 dB
Connector Placement
Bottom
Frequency Band
AWS Multi-Band
