Manufacturer
CommScope
Model #
NHH-65B-R2B
Product Description

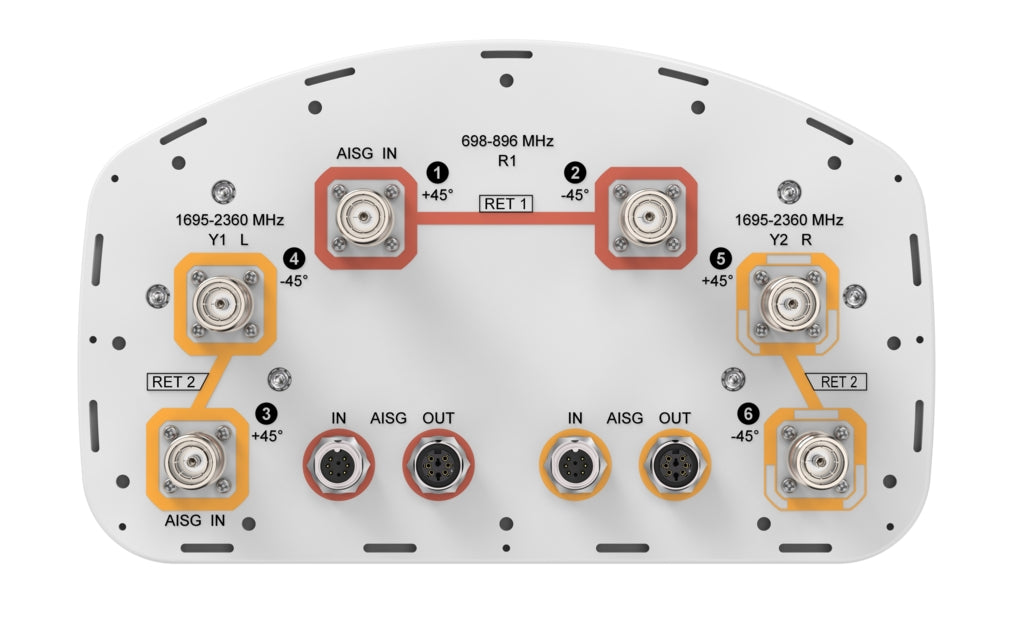

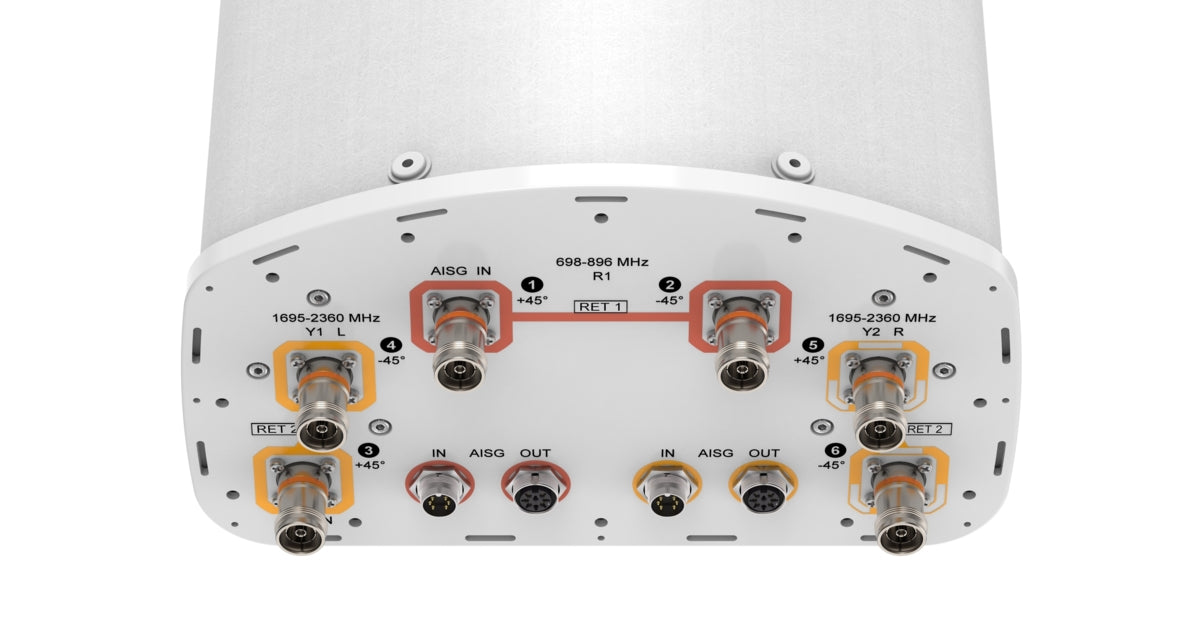

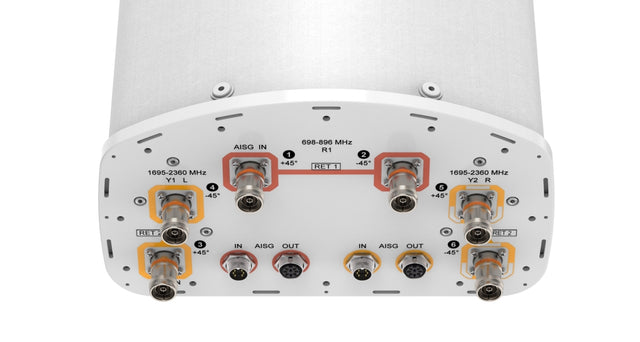

COMMSCOPE's NHH-65B-R2B tri-band antenna, 698 – 896 and two (2) 1695 – 2360 MHz, 65 deg. horizontal beamwidth, internal RET. Both high bands share the same electrical tilt. Six (6) 7/16 DIN Female connectors.
Item Length
71.969 in
Item Weight
11.85 lb
Horizontal Beamwidth
65 deg, 60 deg, 71 deg, 69 deg, 64 deg, 57 deg
Gain dBi (dBi)
14.9 dBi, 15 dBi, 17.7 dBi, 17.9 dBi, 18.4 dBi, 18.7 dBi
Maximum Power (W)
350
RF Connectors
7/16 DIN Female, 7/16 DIN Female, 7/16 DIN Female, 7/16 DIN Female, 7/16 DIN Female, 7/16 DIN Female
Specific Frequency
698-806 MHz, 806-896 MHz, 1695-1880 MHz, 1850-1990 MHz, 1920-2200 MHz, 2300-2360 MHz
Maximum Rated Wind Velocity
150 mile/h
Connector Placement
Bottom
Frequency Band
LTE Multi-Band
