Commscope SBNHH-1D65B
Regular price
$3,09195
Unit price
Shipping calculated at checkout.
Freight: this item requires LTL shipping
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
CommScope
Model #
SBNHH-1D65B
Product Description
COMMSCOPE's SBNHH-1D65B multi-band antenna, 698 – 896 and two (2) 1695 – 2360 MHz, 65 deg. horizontal beamwidth, internal RET. Both high bands share the same electrical tilt. Interleaved dipole technology providing for attractive, low wind load mechanical package.
Item Width
7.1 in
Item Height
72.9 in
Item Length
11.9 in
Item Weight
40.6 lb
Horizontal Beamwidth
68 deg, 66 deg, 69 deg, 66 deg, 63 deg, 58 deg
Gain dBi (dBi)
14.9 dBi, 14.7 dBi, 17.7 dBi, 18.2 dBi, 18.6 dBi, 18.6 dBi
Maximum Power (W)
300
Polarization
+/- 45 Degrees
RF Connectors
7/16 DIN Female
Specific Frequency
698-806 MHz, 806-896 MHz, 1695-1880 MHz, 1850-1990 MHz, 1920-2200 MHz, 2300-2360 MHz
Maximum Rated Wind Velocity
150 mile/h
Minimum Front Back Ratio
27 dB
Lightning Protection
RF connector inner conductor and body grounded to reflector and mounting bracket

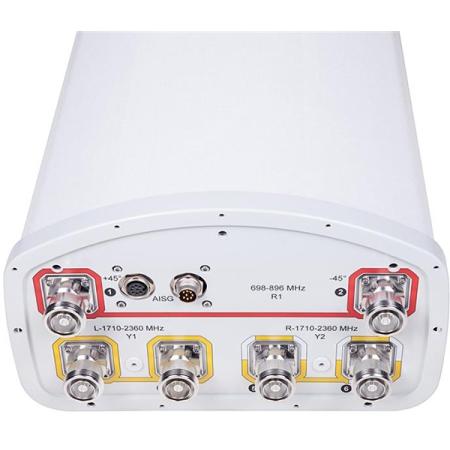

Connector Placement
Bottom
Variable Electrical Downtilt
0-14 deg, 0-14 deg, 0-7 deg, 0-7 deg, 0-7 deg, 0-7 deg
Frequency Band
LTE Multi-Band
