Description
Description
Manufacturer
CommScope
Model #
SBNHH-1D45A
Product Description

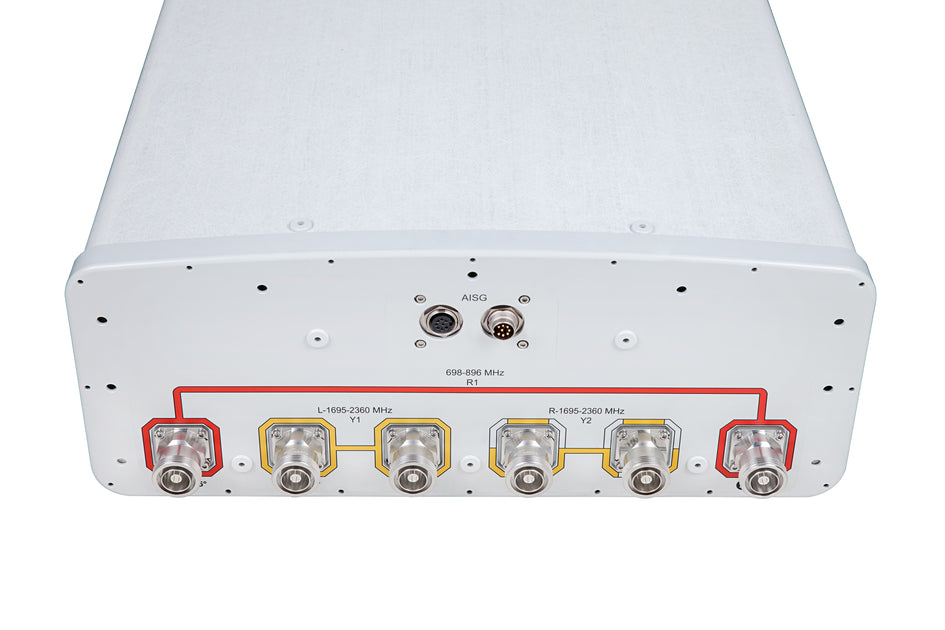

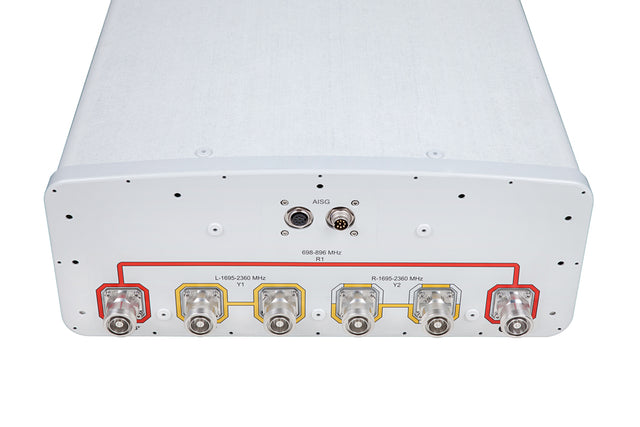

The CommScope SBNHH-1D45A 8 ft tri-band antenna with one (1) 698 – 896 MHz and two (2) 1695 – 2360 MHz and internal electrical tilt. The antenna has six (6) 7/16 DIN Female connectors.
Item Width
18.0 in
Item Height
7.0 in
Item Length
48 in
Item Weight
50.5 lb
Horizontal Beamwidth
48 deg, 43 deg, 44 deg, 43 deg, 44 deg, 39 deg
Jumper Included
No
Gain dBi (dBi)
15.5 dBi, 16.2 dBi, 18.5 dBi, 19.1 dBi, 19.4 dBi, 20.0 dBi
Maximum Power (W)
350
Polarization
+/- 45 Degrees
RF Connectors
7/16 DIN Female
Specific Frequency
698-806 MHz, 806-896 MHz, 1695-1880 MHz, 1850-1990 MHz, 1920-2180 MHz, 2300-2360 MHz
Maximum Rated Wind Velocity
150 mile/h
Minimum Front Back Ratio
33 dB
Lightning Protection
DC Ground
Connector Placement
Bottom
Electrical Downtilt
Variable
Variable Electrical Downtilt
0-10 deg, 0-8 deg
Frequency Band
LTE Multi-Band
