Description
Description
Manufacturer
CommScope
Model #
AL7E158-PS
Product Description

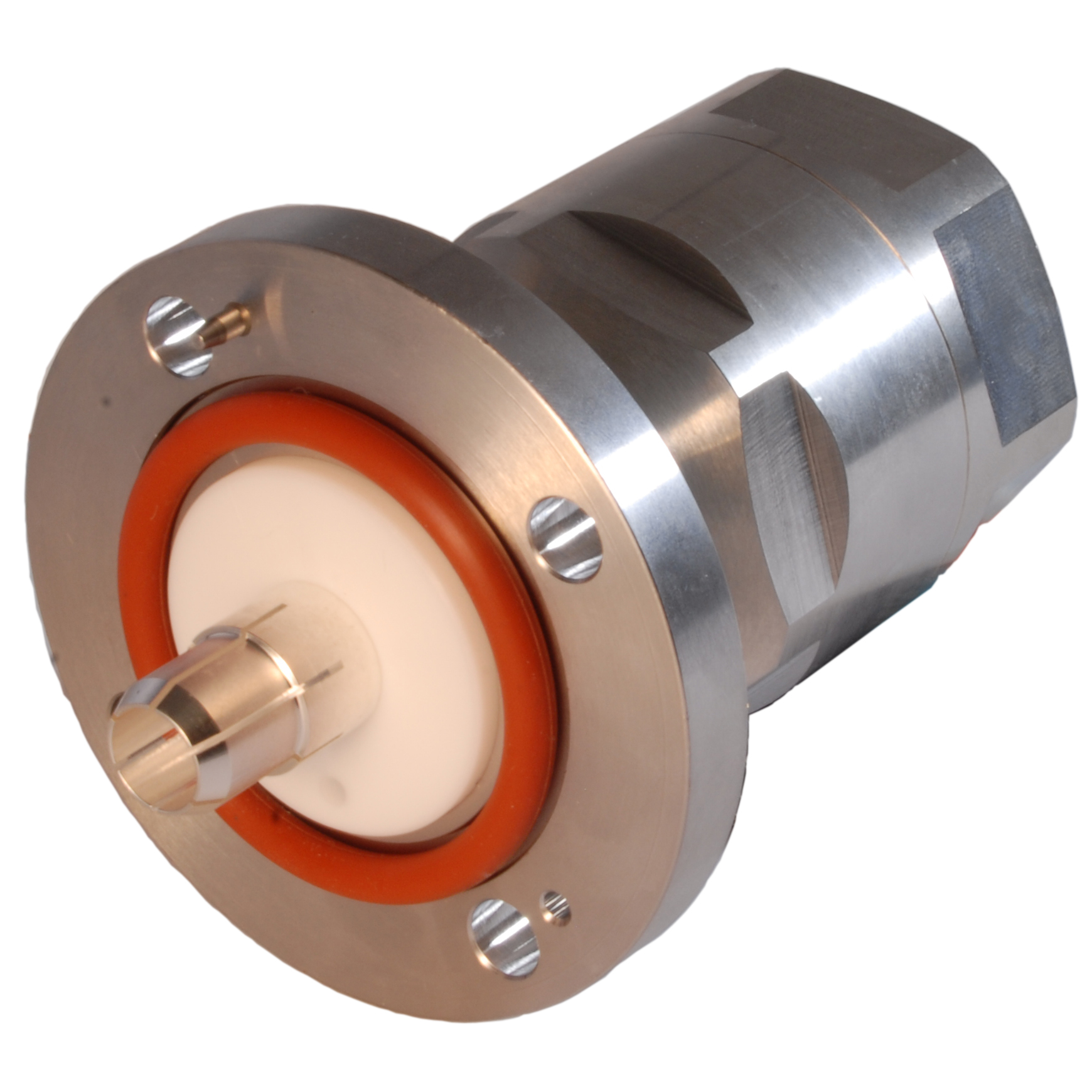

CommScope's AL7E158-PS 1-5/8 in EIA Flange straight connector for 1-5/8 in AVA7-50 and LDF7-50 cable. 0 - 2500 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Silver plated inner contact. Self-flare outer attachment, Thread-in stub inner attachment. Designed, manufactured and/or distributed under ISO 9001:2015
Maximum VSWR
1.07:1
RF Impedance
50 Ohms
RF Connector Body Style
Straight
Body
Trimetal
Low PIM
No
Body Material
Tri-Metal Plated Brass
Fits
AVA7-50, AL7-50
Frequency Range
0-2500 MHz
Outer Contact Attachment Type
Self-flare
