Description
Description
Manufacturer
CommScope
Model #
AL6DF-PSA
Product Description

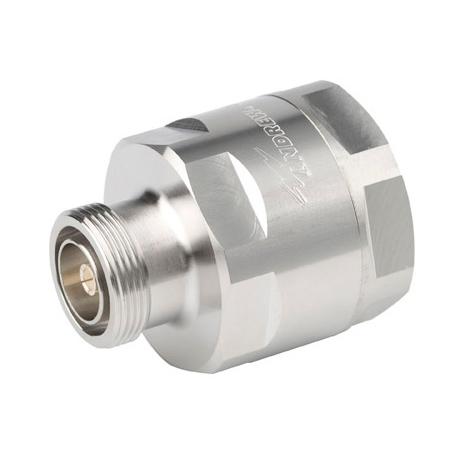

CommScope's AL6DF-PSA 7/16 DIN Female Positive Stop straight connector for 1-1/4 in AVA6-50 cable. 0 - 4000 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Silver plated inner contact. Ring-flare outer attachment, Captivated inner attachment. Meets RoHS and REACH-SVHC standards. Designed, manufactured and/or distributed under ISO 9001:2015
Maximum VSWR
1.11:1
RF Connector
7/16 DIN Female
RF Impedance
50 Ohms
RF Connector Body Style
Straight
Body
Trimetal
Low PIM
No
Body Material
Tri-Metal Plated Brass
Fits
AVA6-50 only
Frequency Range
0-3700 MHz
Outer Contact Attachment Type
Ring-flare
