MPN: TF-ML3S2-14
BRAND: CommScope
SKU: 17033

Commscope TF-ML3S2-14

Name: Commscope TF-ML3S2-14
Brand: CommScope
SKU: 17033
Price: 4230.95 USD
Availability: InStock

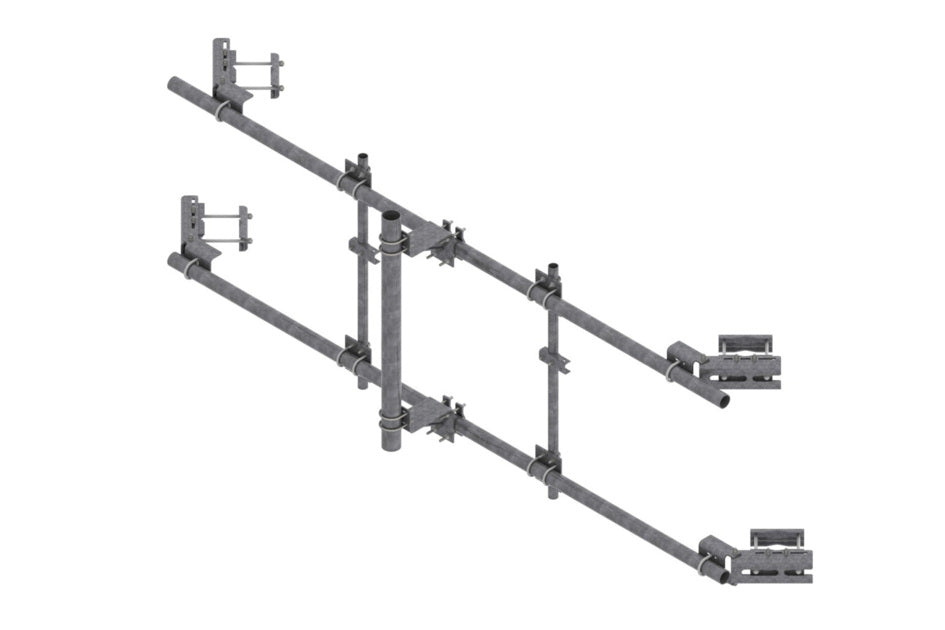

Tower Face Mount. Includes 3-1/2" OD x168" Antenna Pipe with 14" stand-off and two 2-3/8" x 63" strut support for up to 8" legs. *Drop Ship

$4,230⁹⁵

Shipping calculated at checkout.

Freight: this item requires LTL shipping

DOCUMENTS

Specs

Description

Tower Face Mount. Includes 3-1/2" OD x168" Antenna Pipe with 14" stand-off and two 2-3/8" x 63" strut support for up to 8" legs.

Dimensions
Face Width	14.0 Ft \| 4.3 m
Length	12.0 In \| 304.8 mm
Width	168.0 In \| 4267.2 mm
Height	63.0 In \| 1600.2 mm
Mounting Diameter, maximum	8.0 In \| 203.2 mm
Weight	638.0 Lb \| 289.4 kg
General Specifications
Product Type	Tower face mount
Material Type	Hot dip galvanized steel
Mounting	Angle 60°, 203.2 mm (8 in) \| Angle 90°, 152.4 mm (6 in) \| Straight or tapered legs up to 203.2 mm (8 in) OD
