Model #
PM-RU3T
Product Description

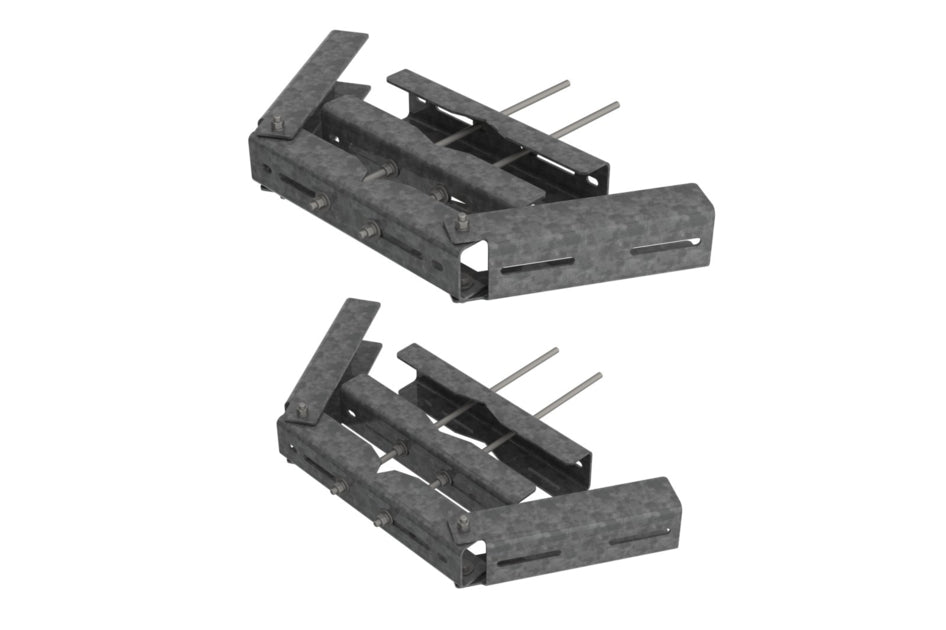

pipe mount for attaching up to three (3) remote radio units (RRUs) to straight or tapered tower legs.
| Includes | Clamps | Hardware |
| Dimensions | |
|---|---|
| Height | 609.6 mm | 24.0 in |
| Width | 609.6 mm | 24.0 in |
| Length | 304.8 mm | 12.0 in |
| General Specifications | |
| Material Type | Hot dip galvanized steel |
| Product Type | Clamp set |
| Dimensions | |
| Mounting Diameter, Max | 142.9 mm | 5-5/8 in |
| Mounting Diameter, Min | 0.0 mm | 0 in |
| Mounting Diameter 2, Max | 142.9 mm | 5-5/8 in |
| Mounting Diamter 2, Min | 0.0 mm | 0 in |
| General Specifications | |
| Tower Taper | Non-tapered | Tapered |
| Weight | 86.19 lbs |
