Description
Description
Manufacturer
CommScope
Model #
LDF2RK-50
Product Description

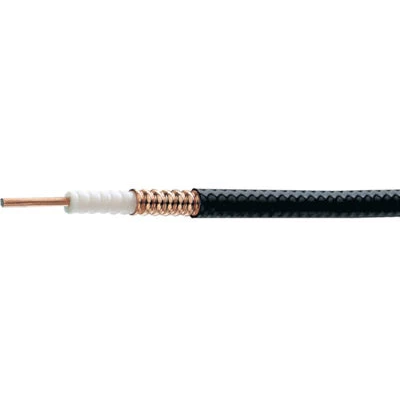

COMMSCOPE's 3/8 in low density foam cable, corrugated copper, black non-halogenated, fire retardant polyolefin jacket
Maximum Power (W)
15600
RF Impedance
50 Ohms
Cable Size
3/8 in
Jacket Material
PE
Jacket Color
Black
Fire Retardant
Yes
Outer Conductor Material
Copper
Reel Type
ABB
VOP
88 %
Comments
Fire Retardant, Low Density Foam
Attenuation/100 ft @ 1700 MHz
4.72 dB
Attenuation/100 ft @ 1920 MHz
4.92 dB
Attenuation/100 ft @ 450 MHz
2.29 dB
Attenuation/100 ft @ 30 MHz
0.563 dB
Attenuation/100 ft @ 50 MHz
0.73 dB
Attenuation/100 ft @ 824 MHz
3.17 dB
Attenuation/100 ft @ 894 MHz
3.31 dB
Attenuation/100 ft @ 2.0 GHz
5.17 dB
Attenuation/100 ft @ 960 MHz
3.44 dB
Attenuation/100 ft @ 150 MHz
1.29 dB
Average Power @ 30 MHz
4.14 kW
Average Power @ 450 MHz
1.02 kW
Average Power @ 50 MHz
3.19 kW
Average Power @ 800 MHz
0.748 kW
Average Power @ 960 MHz
0.678 kW
Average Power @ 894 MHz
0.704 kW
Capacitance Per Foot
23 pF
Cable Weight Per Foot
0.08 lb
Bending Moment
1.4 lb-ft
DC Breakdown Voltage
2500 V
Diameter Over Jacket
0.44 in
Inductance
0.058 µH/ft
Flat Plate Crush Strength
110 PSI
Maximum Frequency
13.5 GHz
Inner Conductor
Copper Clad Aluminum
Minimum Bending Radius
3.75 in
Peak Power
15.6 kW
Tensile Strength
250 lb
