Manufacturer
CommScope
Model #
158EZNM
Product Description

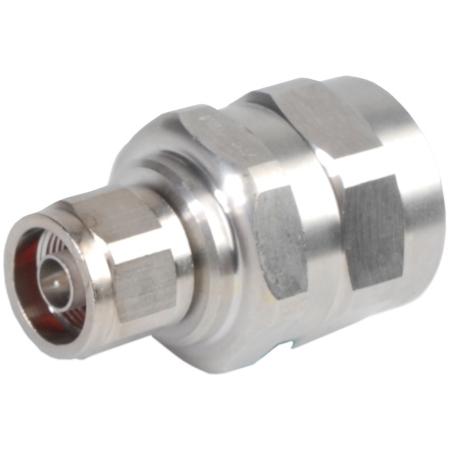

CommScope's 158EZNM Type N Male EZfit straight connector for 1-5/8 in FXL-1873 and AVA7-50 cable. 0 - 2700 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Silver plated inner contact. Clamp outer attachment, Captivated inner attachment. Meets RoHS and REACH-SVHC standards. Designed, manufactured and/or distributed under ISO 9001:2015
Maximum VSWR
1.06:1
RF Connector
N Male
RF Impedance
50 Ohms
RF Connector Body Style
Straight
Strip Tool
158-HPT for FXL, A7-EZPT for AVA
Body
Trimetal
Low PIM
No
Body Material
Tri-Metal Plated Brass
Fits
AVA7-50; FXL-1873
Frequency Range
0-2.7 GHz
Nut Wrench: Front/Back
1873-AW
Torque Wrench
TW-158-EZFC
Outer Contact Attachment Type
Clamp
