Description
Description
Manufacturer
CommScope
Model #
FSJ1RK-50B
Product Description

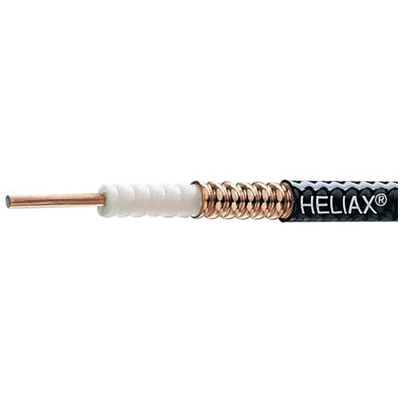

The CommScope FSJ1RK-50B 1/4 in Superflex cable has a black fire retardant jacket. This 50 Ohm coaxial cable is superflexible and less prone to kinks because of a spiral corrugated outer conductor. The coaxial cable transmission line has a copper-clad aluminum center conductor. Maximum frequency is 18 GHz. The CommScope 1/4 in Superflex coaxial cable is available in bulk and is cut per foot.
RF Impedance
50 Ohms
Cable Size
1/4 in
Jacket Material
PE
Jacket Color
Black
Fire Retardant
Yes
Outer Conductor Material
Copper
Reel Type
ABA
VOP
84 %
Attenuation/100 ft @ 1700 MHz
7.936 dB
Attenuation/100 ft @ 450 MHz
3.906 dB
Attenuation/100 ft @ 30 MHz
0.973 dB
Attenuation/100 ft @ 50 MHz
1.261 dB
Attenuation/100 ft @ 824 MHz
5.376 dB
Attenuation/100 ft @ 894 MHz
5.614 dB
Attenuation/100 ft @ 2.0 GHz
8.673 dB
Attenuation/100 ft @ 960 MHz
5.832 dB
Attenuation/100 ft @ 150 MHz
2.21 dB
Average Power @ 30 MHz
2.29 kW
Average Power @ 450 MHz
0.57 kW
Average Power @ 50 MHz
1.77 kW
Average Power @ 800 MHz
0.42 kW
Average Power @ 960 MHz
0.38 kW
Average Power @ 894 MHz
0.4 kW
Capacitance Per Foot
24 pF
Cable Weight Per Foot
0.05 lb
Bending Moment
0.8 lb-ft
DC Breakdown Voltage
3000 V
Diameter Over Jacket
0.29 in
Inductance
0.061 µH/ft
Flat Plate Crush Strength
100 PSI
Maximum Frequency
18 GHz
Inner Conductor
Copper Clad Steel
Minimum Bending Radius
1 in
Peak Power
6.4 kW
Tensile Strength
150 lb
