MPN: ABT-DMDF-ADBH
BRAND: CommScope
SKU: 17277

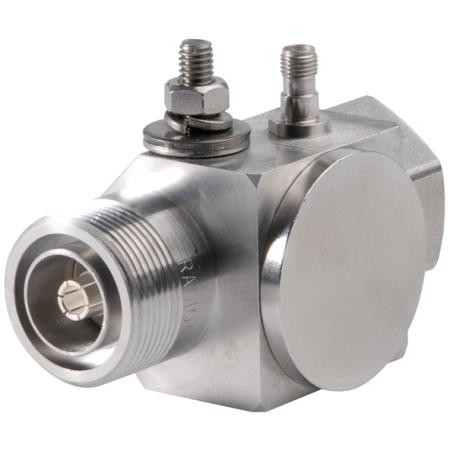

Commscope ABT-DMDF-ADBH

COMMSCOPE combines bias tee and surge protection into 1 multiband unit.806-960 /1710-2170 MHz, 50 ohms. SMA F for DC & DM Antenna Side and DF equipment side

$299⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Specs

385560 ABT DMDF ADBH+SPEC+SHEET

Description

Manufacturer

CommScope

Model #

ABT-DMDF-ADBH

Product Description

COMMSCOPE's ABT-DMDF-ADBH dual band bias tee surge arrestor, 698 – 960 MHz and 1700 – 2170 MHz, with interface types DIN Male and DIN Female

Item Weight

1.14 lb

Maximum Power (W)

12000

Insertion Loss

<=0.1dB

Frequency Range

698-960 MHz, 1710-2170 MHz

Nominal Insertion Loss

0.1 dB

RF Power

500 W

Protected Side Connector

7/16 DIN Female

Surge Side Connector

7/16 DIN Male
