Description
Description
Manufacturer
Belden
Model #
RF195

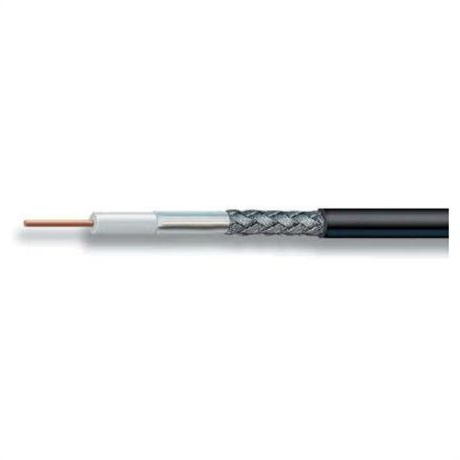

Product Description
50 Ohm Coaxial Cable
Cable Type
3/16" Braided
Connectors
NONE
Shield %
100% Foil / 90% Braid
Impedance
50 Ohms
VOP.
77%
Center Conductor
0.037" Solid
Insulation
Foam HD Polyethylene
Other Spec
Black Jacket
Nom. core O.D. (in.)
0.113"
Nom. O.D. (in.)
0.195"
Losses Shown are based on 100 Foot Length
loss 50 MHz
2.50 db
loss 100 MHz
3.25 db
loss 400 MHz
6.53 db
loss 900 MHz
10.30 db
loss 1000 MHz
11.27 db
Nom. Capacitance (pF/ft)
24.9
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
10 Years
