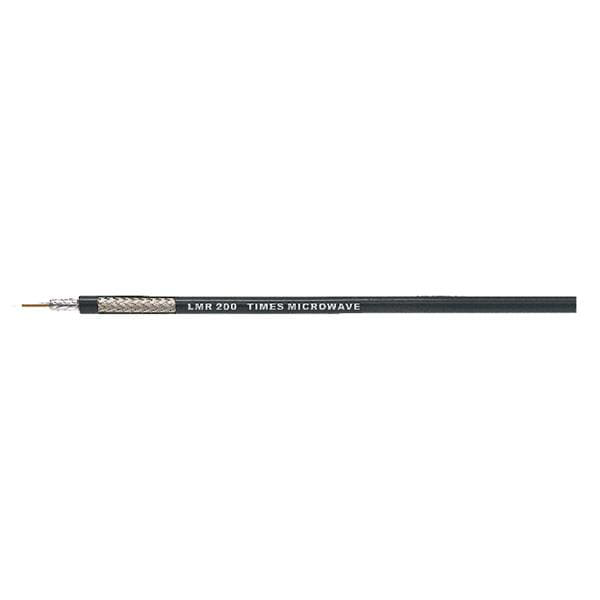

Times Microwave LMR-200
Regular price
$109
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
Times Microwave
Model #
LMR®-200
Product Description
50 Ohm Coaxial Cable
Cable Type
3/16" Braided
Connectors
N/A
Shield %
100% Foil
Impedance
50 Ohms
VOP.
83%
Center Conductor
0.044" Solid
Insulation
Foam
Other Spec
Black Jacket
Nom. core O.D. (in.)
0.116"
Nom. O.D. (in.)
0.195"
Losses Shown are based on 100 Foot Length
loss 50 MHz
2.5 db
loss 100 MHz
3.23 db
loss 400 MHz
6.53 db
loss 900 MHz
9.89 db
loss 1000 MHz
10.44 db
Nom. Capacitance (pF/ft)
24.5
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
5 Years
