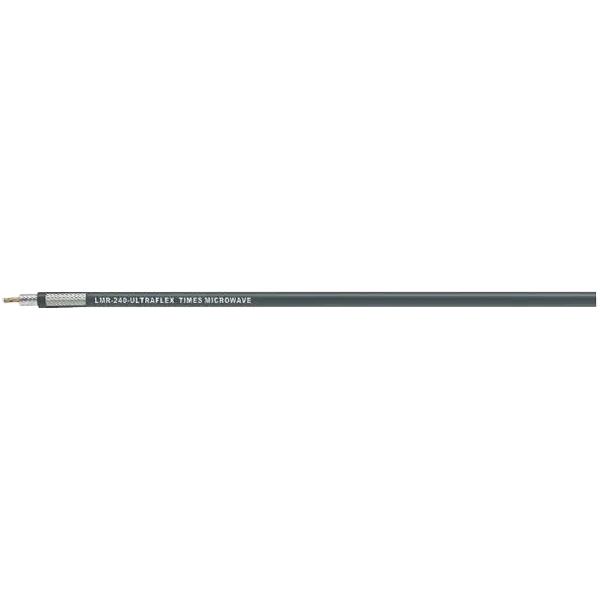

Times Microwave LMR-240UF
Regular price
$149
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
Times Microwave
Model #
LMR®-240UF
Product Description
50 Ohm Coaxial Cable - Flexible Low Loss RG8X Cable
Cable Type
1/4" Braided
Shield %
90% Foil
Impedance
50 Ohms
VOP.
84%
Center Conductor
0.056" Stranded
Insulation
Foam Polyethylene
Other Spec
UltraFlex Cable
Nom. core O.D. (in.)
0.056"
Nom. O.D. (in.)
0.240"
Losses Shown are based on 100 Foot Length
loss 50 MHz
1.7 db
loss 100 MHz
2.974 db
loss 400 MHz
6.014 db
loss 900 MHz
9.12 db
loss 1000 MHz
9.631 db
Nom. Capacitance (pF/ft)
24.2
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
5 Years
