Description
Description
Manufacturer
CommScope
Model #
EW63
Product Description

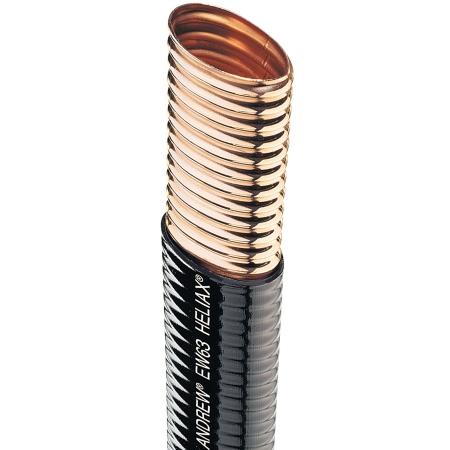

COMMSCOPE's EW63 5.925 – 7.125 GHz elliptical waveguide, standard jacket.
All waveguide needs to be pressurized before shipping. Add SKU 576827 to the order or worksheet.
Waveguide Frequency Range
17.7 - 19.7 GHz
Jacket Material
PE
Reel Type
AD
RF Impedance
50 Ohms
Bending Radius E-Plane
6 in
Bending Radius H-Plane
15 in
Maximum Length For 1 Hoist Grip
200 ft
O.D. (in) Minor Axis
0.48 in
O.D. (in) Major Axis
0.78 in
Maximum Operating Pressure
10
Sweep Tested
No
Operation Band
17.7-19.7 GHz
