Description
Description

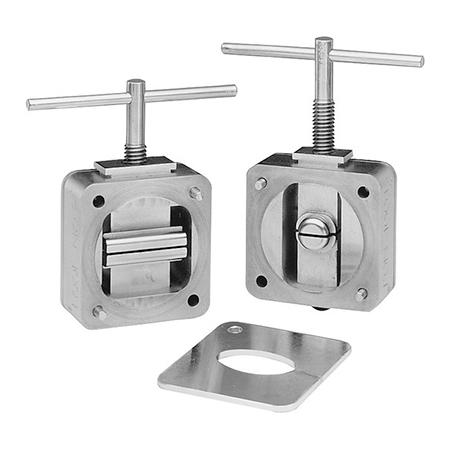

The Andrew 205127 is a specialized flaring tool kit designed for field installation of connectors and splices on HELIAX® EW220 and EW240 elliptical waveguide transmission lines.
The kit is engineered to produce precise, consistent waveguide flares, helping ensure proper mechanical attachment and dependable electrical performance when installing compatible microwave waveguide connectors.
Its precision steel tooling forms the waveguide ends to the required profile, supporting accurate connector installation while minimizing deformation of the waveguide conductor.
The flaring process uses major-axis and minor-axis tools to shape the elliptical waveguide opening. Andrew's flaring system is designed to deliver repeatable results without excessive compression or work-hardening of the conductor.
Intended for professional telecommunications and microwave installation applications, the 205127 is suitable for preparing waveguide connections used in point-to-point microwave links, tower installations, and RF transmission infrastructure.
The kit includes a screw wrench and is designed for repeated professional field use.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Manufacturer |
Andrew / Amphenol (formerly CommScope) |
|
Part Number |
205127 |
|
Product Brand |
HELIAX® |
|
Product Type |
Elliptical Waveguide Flaring Tool Kit |
|
Tool Type |
Flare Tool |
|
Compatible Waveguide |
EW220 and EW240 |
|
Manufacturer-Specified Waveguide Size |
WR42 / WG20 / R220 |
|
Application |
Field installation of waveguide connectors |
|
Material |
Steel |
|
Thread Size |
#8 |
|
Included Accessory |
Screw Wrench |
|
Package Quantity |
1 Kit |
|
Packed Height |
10.512 in (26.7 cm) |
|
Packed Width |
7.992 in (20.3 cm) |
|
Packed Length |
4.016 in (10.2 cm) |
|
Gross Weight |
2.425 lb (1.1 kg) |
|
Ordering Classification |
Non-standard Product |
|
RoHS Compliance |
Compliant |
|
REACH-SVHC |
Compliant |
|
China RoHS |
Below maximum concentration value |
|
Quality Standard |
ISO 9001:2015 |
