Description
Description
Manufacturer
CommScope
Model #
EWP63-59W
Product Description

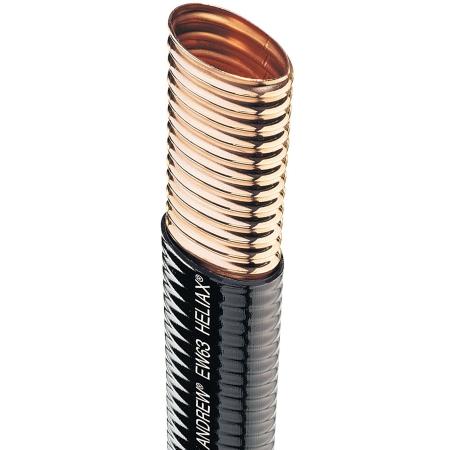

COMMSCOPE's EWP63-59W 5.800 – 7.125 GHz premium elliptical waveguide, standard jacket.
All bulk waveguide needs to be pressurized before shipping. Add SKU 576827 if ordering cable without attached connectors.
Waveguide Frequency Range
5.800 - 7.125 GHz
Jacket Material
PE
Reel Type
AA
RF Impedance
50 Ohms
Attenuation/100 ft @ 7.1 GHz
1.32 dB
Attenuation/100 ft @ 6.4 GHz
1.4 dB
Attenuation/100 ft @ 5.9 GHz
1.49 dB
Bending Radius E-Plane
7 in
Bending Radius H-Plane
20 in
Maximum Length For 1 Hoist Grip
330 ft
O.D. (in) Minor Axis
1.16 in
O.D. (in) Major Axis
2.01 in
Maximum Operating Pressure
10
Sweep Tested
Yes
Operation Band
5.80-7.125 GHz
