Description
Description
Manufacturer
CommScope
Model #
HJ7-50A
Product Description

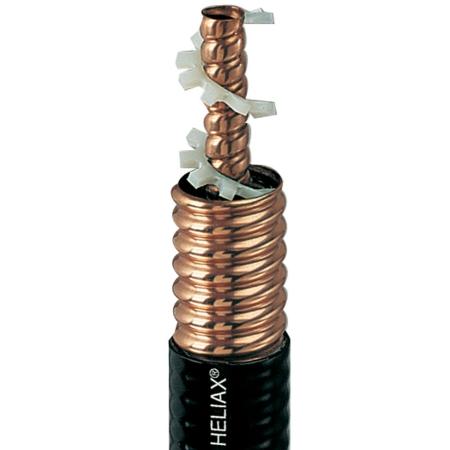

COMMSCOPE's HELIAX standard air dielectric coaxial cable, corrugated copper, 1 5/8 in, black PE jacket
RF Impedance
50 Ohms
Cable Size
1-5/8 in
Fire Rating
General Purpose
Reel Type
D
VOP
0.921
Outer Conductor Material
Copper
Attenuation/100 ft @ 1700 MHz
0.948 dB
Attenuation/100 ft @ 450 MHz
0.451 dB
Attenuation/100 ft @ 50 MHz
0.142 dB
Attenuation/100 ft @ 824 MHz
0.629 dB
Attenuation/100 ft @ 1920 MHz
0.928 dB
Attenuation/100 ft @ 30 MHz
0.109 dB
Attenuation/100 ft @ 894 MHz
0.658 dB
Attenuation/100 ft @ 960 MHz
0.685 dB
Attenuation/100 ft @ 150 MHz
0.251 dB
Attenuation/100 ft @ 2.0 GHz
1.04 dB
Average Power @ 30 MHz
30.8 kW
Average Power @ 50 MHz
23.7 kW
Average Power @ 450 MHz
7.44 kW
Average Power @ 800 MHz
5.42 kW
Average Power @ 894 MHz
5.1 kW
Average Power @ 960 MHz
4.9 kW
Capacitance Per Foot
22.1 pF
DC Breakdown Voltage
11000 V
Diameter Over Jacket
1.98 in
Flat Plate Crush Strength
175 PSI
Cable Weight Per Foot
1.04 lb
Bending Moment
30 lb-ft
DC Resistance (ctr/shld) Ohms
0.22/0.10
Inductance
0.055 µH/ft
Maximum Frequency
2.7 GHz
Inner Conductor
Copper
Minimum Bending Radius
20 in
Peak Power
305 kW
Tensile Strength
750 lb
