MPN: EW77
BRAND: CommScope
SKU: 17680

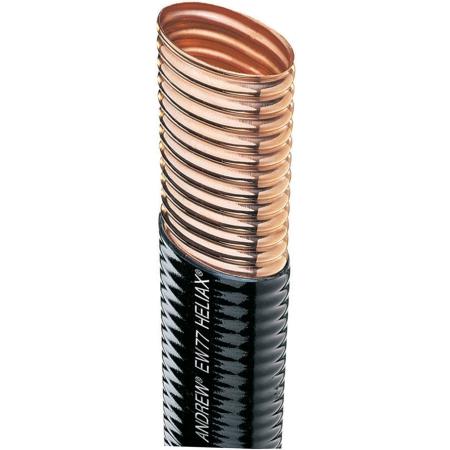

Commscope EW77

COMMSCOPE 7.125-8.500 GHz (EW77) elliptical wave guide, standard jacket. **Use sku 485745 if ordering cable w/out attached connectors.

$47⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Specs

483147 EW77+SPEC+SHEET

Description

Manufacturer

CommScope

Model #

EW77

Product Description

COMMSCOPE's EW77 7.125 – 8.500 GHz elliptical waveguide, standard jacket. *Use SKU 485745 if ordering cable without attached connectors.

Waveguide Frequency Range

7.125 - 8.500 GHz

Jacket Material

PE

Reel Type

AB

RF Impedance

50 Ohms

Attenuation/100 ft @ 7.1 GHz

1.91 dB

Attenuation/100 ft @ 6.4 GHz

2.17 dB

Bending Radius E-Plane

7 in

Bending Radius H-Plane

20 in

Maximum Length For 1 Hoist Grip

200 ft

O.D. (in) Minor Axis

1 in

O.D. (in) Major Axis

1.72 in

Maximum Operating Pressure

10

Sweep Tested

No

Operation Band

7.125-8.500 GHz
