Description
Description
Manufacturer
CommScope
Model #
EW52
Product Description

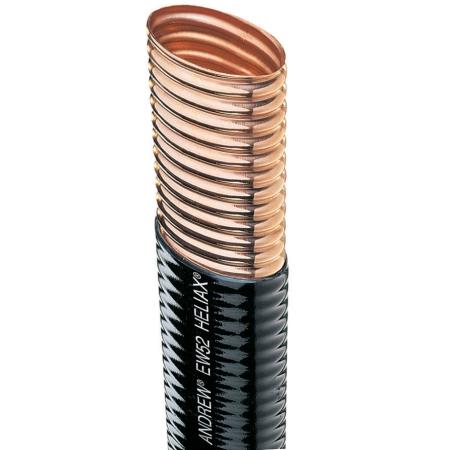

COMMSCOPE's EW52 5.60 – 6.425 GHz standard elliptical waveguide. Conductor material is corrugated copper with a black polyethylene jacket.
All bulk waveguide needs to be pressurized before shipping. Add SKU 576827 if ordering cable without attached connectors.
Waveguide Frequency Range
5.6 - 6.425 GHz
Jacket Material
PE
Reel Type
AA
RF Impedance
50 Ohms
Attenuation/100 ft @ 6.4 GHz
1.16 dB
Attenuation/100 ft @ 5.9 GHz
1.21 dB
Bending Radius E-Plane
8 in
Bending Radius H-Plane
22 in
Maximum Length For 1 Hoist Grip
330 ft
O.D. (in) Minor Axis
1.26 in
O.D. (in) Major Axis
2.21 in
Maximum Operating Pressure
10
Sweep Tested
No
Operation Band
5.60-6.425 GHz
