Description
Description
Manufacturer
CommScope
Model #
H7FB-014-S
Product Description

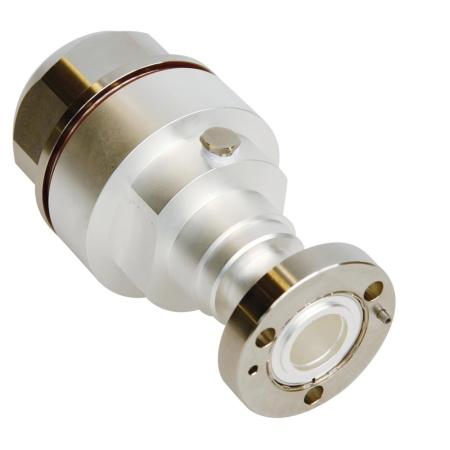

CommScope's H7FB-014-S 7/8 in EIA Female Flange with gas barrier for 1-5/8 in HJ7-50A air dielectric cable. 0 - 2700 MHz, 50 Ohm, 0.05 dB insertion loss. Silver plated outer contact, Silver plated inner contact. Tab-flare outer attachment, Thread-in stub inner attachment. Meets RoHS and REACH-SVHC standards. Designed, manufactured and/or distributed under ISO 9001:2015. Coupling Element, O-Ring, and screw-set are sold separately.
RF Impedance
50 Ohms
Body
Silver
Outer Conductor Material
Silver-Plated Copper
Body Material
Silver Plated Brass
Outer Contact Attachment Type
Tab-flare
