Manufacturer
CommScope
Model #
R5PNM
Product Description

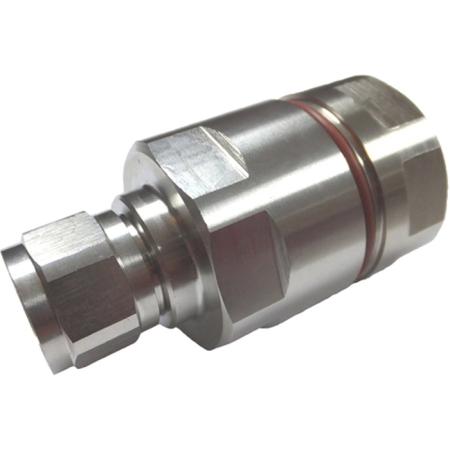

CommScope's R5PNM Type N Male Low PIM Positive Stop straight connector for 7/8 in RCT RADIAX Radiating cable. 0 - 2700 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Silver plated inner contact. Clamp outer attachment, Captivated inner attachment. Meets RoHS standards. Designed, manufactured and/or distributed under ISO 9001:2015
Maximum VSWR
1.08:1
RF Connector
N Male
RF Impedance
50 Ohms
RF Connector Body Style
Straight
Body
Straight
Low PIM
Yes
Body Material
Tri-Metal Plated Brass
Center Pin Type
Captivated
Fits
RCT RADIAX
Frequency Range
0-2.7 GHz
Outer Contact Attachment Type
Clamp
