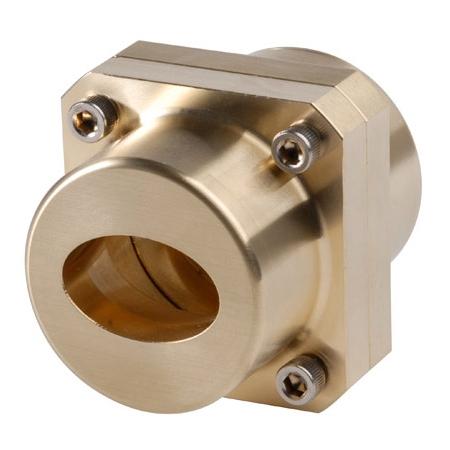

The Andrew 1127DZ is a brass splice connector designed to join two sections of HELIAX EW127A elliptical waveguide.
It provides a direct waveguide-to-waveguide connection without requiring rectangular waveguide flanges or an intermediate adapter.
Designed for microwave systems operating between 11.7 and 13.25 GHz, the splice offers low insertion loss and supports pressurized waveguide installations.
The connector accommodates both tab-flare and tool-flare attachment methods.
Typical applications include repairing damaged waveguide sections, extending existing microwave transmission lines, and joining waveguide runs in telecommunications and point-to-point microwave installations.
Technical Specifications
|
Specification |
Description |
|---|---|
|
Manufacturer |
Andrew / Amphenol |
|
Former Brand |
CommScope |
|
Part Number |
1127DZ |
|
Product Series |
HELIAX |
|
Product Type |
Elliptical Waveguide Splice Connector |
|
Compatible Waveguide |
EW127A / EWP127A family |
|
Frequency Range |
11.7–13.25 GHz |
|
Connection Type |
Splice-to-Splice |
|
Body Style |
Straight Splice |
|
Material |
Brass |
|
Length |
3.44" (87.376 mm) |
|
Width |
2.26" (57.404 mm) |
|
Typical Insertion Loss |
0.01 dB |
|
Attachment Method |
Tab-Flare / Tool-Flare |
|
Pressurizable |
Yes |
|
Contact Plating |
Unplated |
|
Operating Temperature |
−55°C to +85°C |
