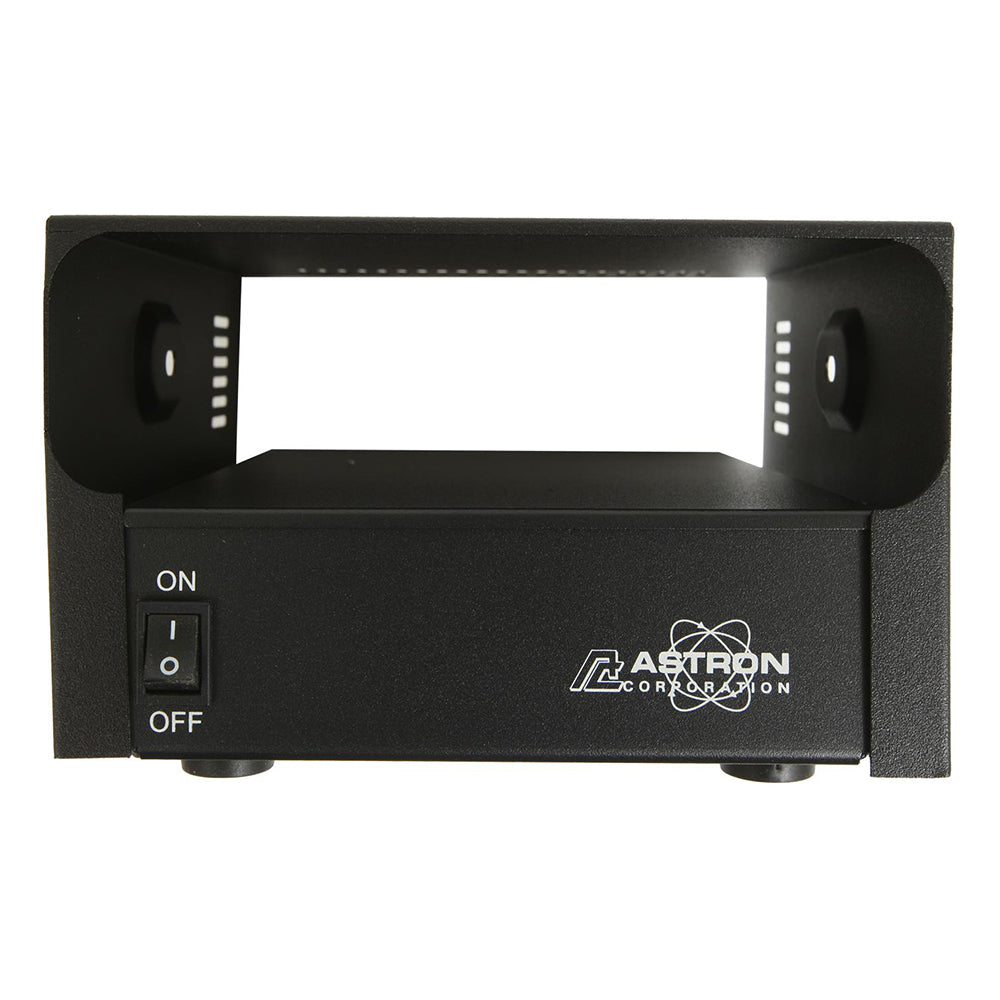

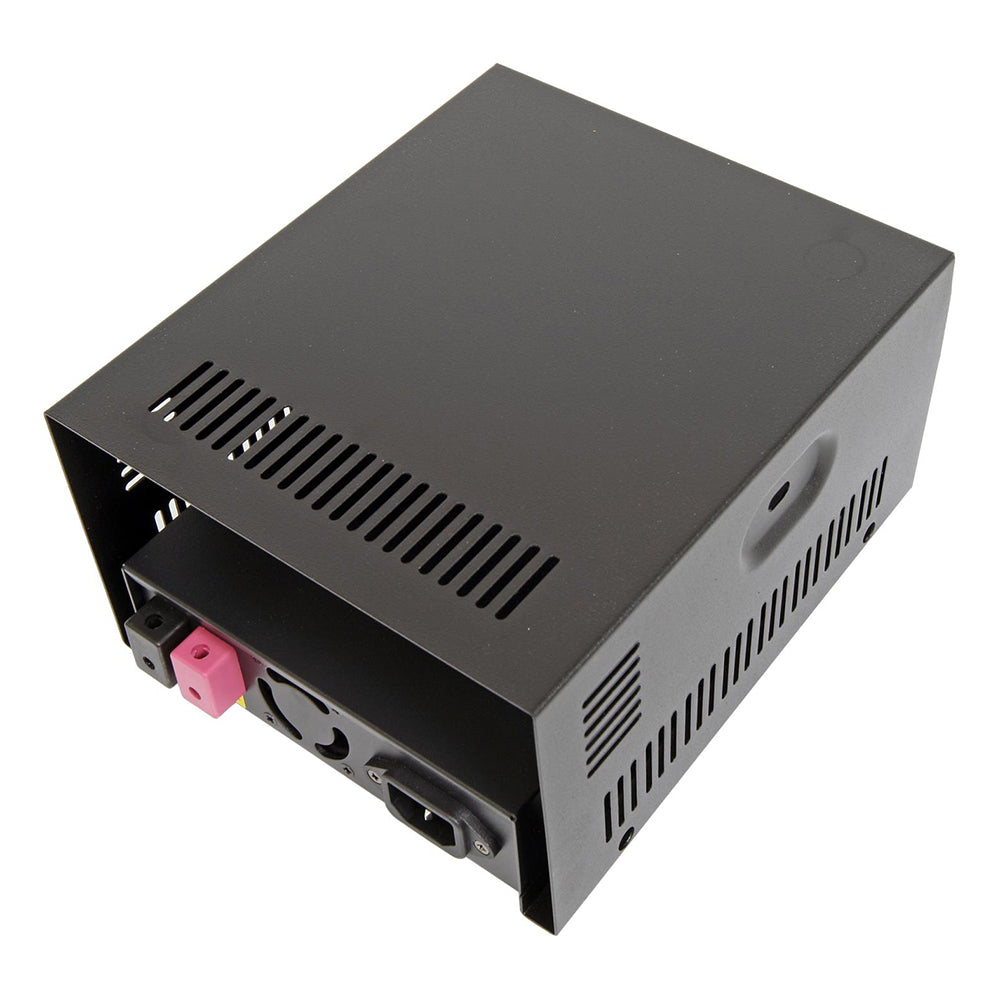

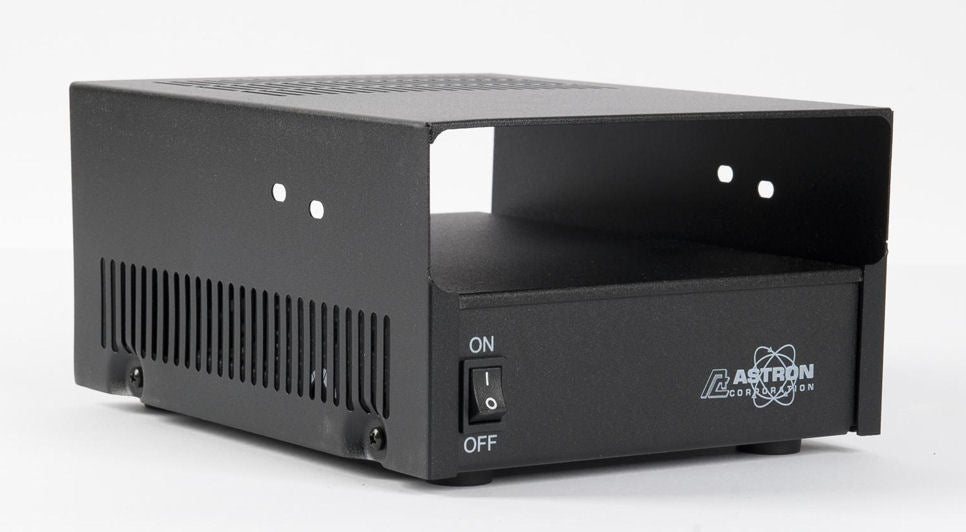

Astron SL-15SM/GTX/M1225
MPN SL-15SM/GTX/M1225SKU 1834Product type Switching Power Supply
Regular price
$19595
Unit price
Key Specifications
- Output Voltage
- 13.8V
- Continuous Amps
- 12A
- Supply Type
- Switching
Product details
Manufacturer
Astron
Model #
Motorola SM50, XPR2500,SM120, CM200, CM200D, CM300, CM300D, GTX, M1225, PM400 (High Power)
Product Description
15 Amp Power Supply
Input Voltage (VAC)
115 Volts AC
Output Voltage (VDC)
13.8 Volts DC
Amperage (Cont.)
12
Amperage (Intermittent)
15
Description
"Slim Line" Series. More compact than the standard models. Solid State electronically regulated. Feature fold-back current limiting to protect the power supply from excessive current or shorted output.
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Features include:
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Features include:
- Solid state electronically regulated
- Fold-back current limiting protects power supply from excessive current and continuous shorted output
- Crowbar over voltage protection on all models except RS-3L, RS-4L and RS-5L
- Maintain regulation and low ripple at low line input voltage
- Heavy duty heat sink
- Three conductor power cord
- All metered units feature backlit meters
Ripple Voltage
5 mV
Fold-Back Protection
Yes
Crowbar Protection
Yes
Dimensions (Width x Height x
Depth) inches
7 x 5.375 x 9.75 (Not including radio cabinet portion)
Product Narrative
Astron linear power supplies are heavy duty and solid state electronically regulated.
Warranty
1 yr
