Description

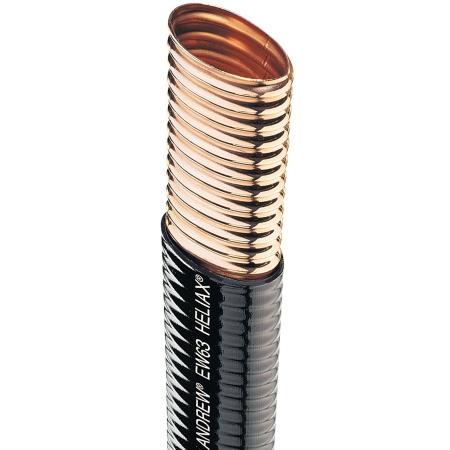

The Andrew 35409-19 is a HELIAX Standard elliptical waveguide designed for microwave communications systems operating between 5.925 and 7.125 GHz.
It features a corrugated copper waveguide with a black, non-halogenated, fire-retardant polyolefin jacket.
Unlike ordinary coaxial cable, elliptical waveguide uses a hollow metallic structure to transmit microwave energy. This design provides an efficient transmission path between microwave radio equipment and antennas.
The 35409-19 is particularly suitable for installations requiring a fire-retardant jacket, such as telecommunications equipment buildings and cable routes with applicable fire-safety requirements.
Technical Specifications
|
Specification |
Description |
|---|---|
|
Manufacturer |
Andrew / Amphenol (formerly CommScope) |
|
Part Number |
35409-19 |
|
Product Series |
HELIAX Standard EW63 |
|
Product Type |
Elliptical Waveguide |
|
Frequency Range |
5.925–7.125 GHz |
|
Construction |
Corrugated Copper |
|
Jacket |
Non-Halogenated, Fire-Retardant Polyolefin |
|
Jacket Color |
Black |
|
Outside Width (E-Plane) |
2.012 inches |
|
Outside Height (H-Plane) |
1.161 inches |
|
VSWR |
1.15 |
|
Return Loss |
23.13 dB |
|
Attenuation at 6.13 GHz |
1.444 dB/100 ft |
|
Cable Weight |
0.511 lb/ft |
|
Multiple-Bend Radius (E-Plane) |
10.236 inches |
|
Multiple-Bend Radius (H-Plane) |
29.134 inches |
|
Fire-Retardancy Test |
UL 1666 / CATVR / CMR |
