Description
Description
Manufacturer
CommScope
Model #
SBNHH-1D65C
Product Description

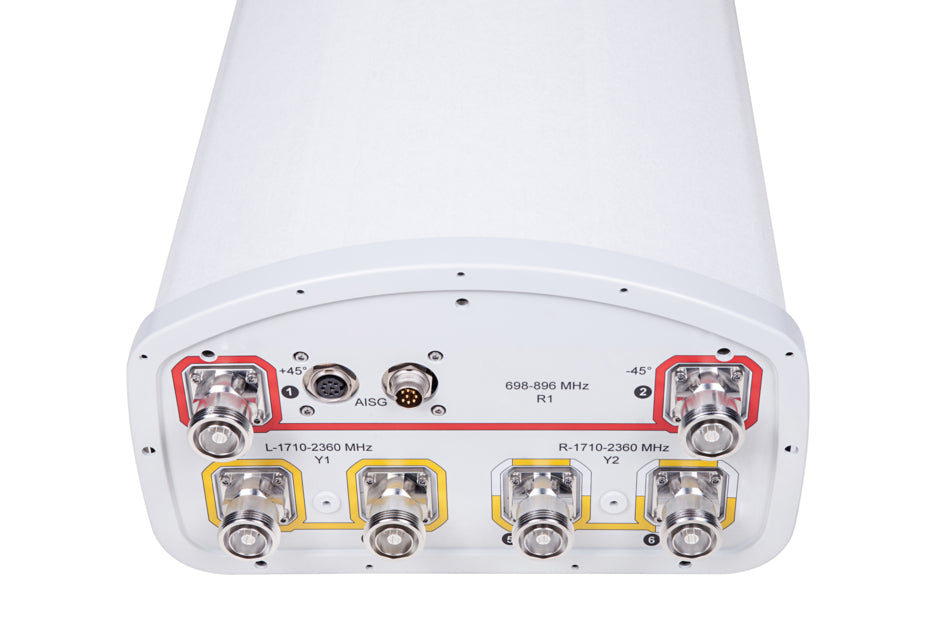

COMMSCOPE's SBNHH-1D65C tri-band antenna with one (1) 698 – 896 MHz and two (2) 1710 – 2360 MHz bands. It features internal RET and six (6) 7/16 DIN Female connectors. The interleaved dipole technology provides for attractive, low wind load mechanical package. It includes a wide profile antenna downtilt mounting kit for 2.5 – 4.5 in OD round members.
Item Width
11.9 in
Item Height
7.1 in
Item Length
96 in
Item Weight
49.6 lb
Gain dBd
13.65 dBd, 13.45 dBd, 15.15 dBd, 15.65 dBd, 16.05 dBd, 15.95 dBd
Horizontal Beamwidth
66 deg, 64 deg, 70 deg, 65 deg, 63 deg, 58 deg
Jumper Included
No
Gain dBi (dBi)
15.8 dBi, 15.6 dBi, 17.3 dBi, 17.8 dBi, 18.2 dBi, 18.1 dBi
Maximum Power (W)
400
Polarization
+/- 45 Degrees
RF Connectors
7/16 DIN Female
Specific Frequency
698-806 MHz, 806-896 MHz, 1710-1880 MHz, 1850-1990 MHz, 1920-2180 MHz, 2300-2360 MHz
Maximum Rated Wind Velocity
150 mile/h
Vertical Beamwidth (Deg)
8.9, 7.8, 5.7, 5.2, 5, 4.4
Lightning Protection
DC Ground
Connector Placement
Bottom
Electrical Downtilt
Variable
Frequency Band
LTE Multi-Band
