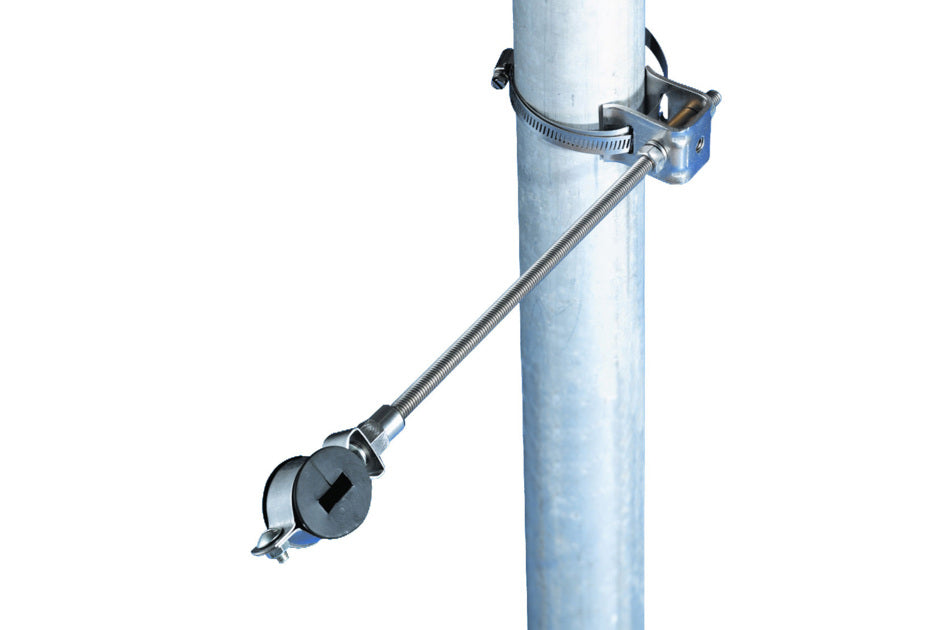

The Andrew 244106A-120 is a stainless steel FlexTwist waveguide hanger assembly designed to support WR75 rectangular flexible waveguide on telecommunications towers and microwave antenna installations.
It mounts to a 4.5-inch outside-diameter support pipe and holds one waveguide assembly securely in place. The hanger helps stabilize the flexible waveguide and reduce unwanted movement caused by wind and environmental conditions.
The kit includes a stainless steel clamp, threaded rod, and rubber grommet to support the waveguide without direct metal-to-metal contact.
Andrew rates the assembly to withstand winds of 125 mph with 1/2-inch radial ice.
Technical Specifications
|
Specification |
Description |
|---|---|
|
Manufacturer |
Andrew / Amphenol |
|
Former Brand |
CommScope |
|
Part Number |
244106A-120 |
|
Product Type |
FlexTwist Waveguide Hanger Kit |
|
Compatible Waveguide |
WR75 / WG17 / R120 |
|
Hanger Type |
FlexTwist Hanger |
|
Material |
Stainless Steel |
|
Color |
Silver |
|
Pipe Mounting Diameter |
4.5 inches OD |
|
Waveguides per Hanger |
1 |
|
Length |
25.252 inches |
|
Width |
4.000 inches |
|
Height |
0.402 inches |
|
Wind Survival Rating |
125 mph with 1/2" radial ice |
|
Operating Temperature |
−40°F to +185°F |
|
Included Components |
Clamp, threaded rod, rubber grommet |
|
Package Quantity |
1 assembly |
|
Gross Weight |
3.616 lbs |
