Astron SS-10TK-7180
MPN SS-10TK-7180SKU 1839Product type Switching Power Supply
Regular price
$14795
Unit price
Key Specifications
- Output Voltage
- 13.8V
- Continuous Amps
- 7A
- Supply Type
- Switching
Product details
Manufacturer
Astron
Model #

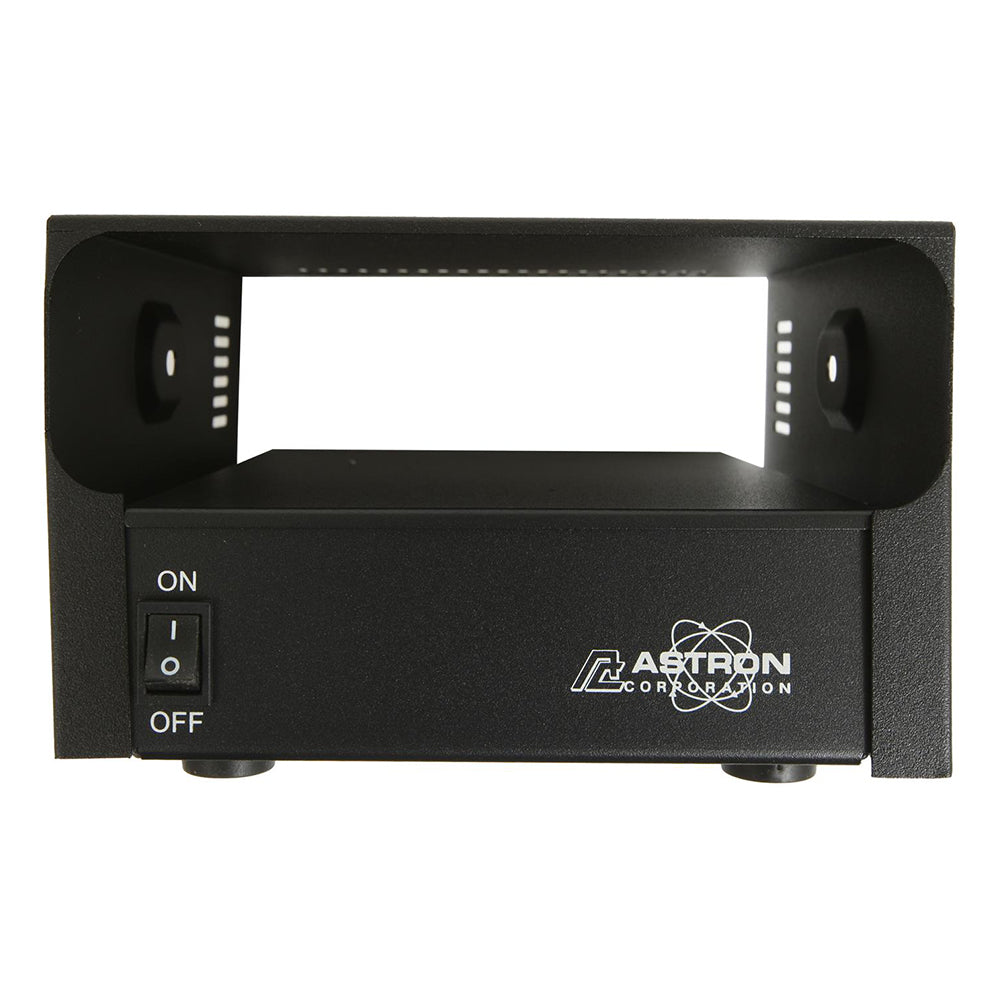

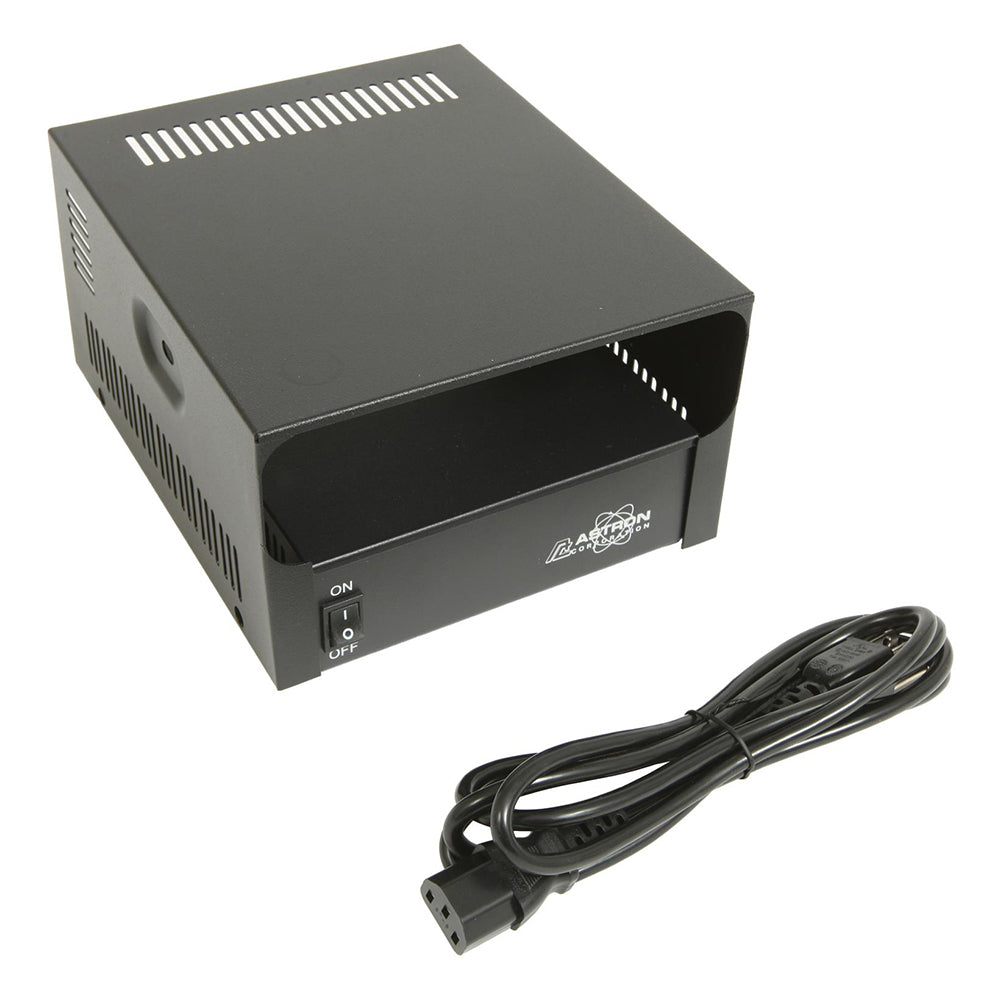

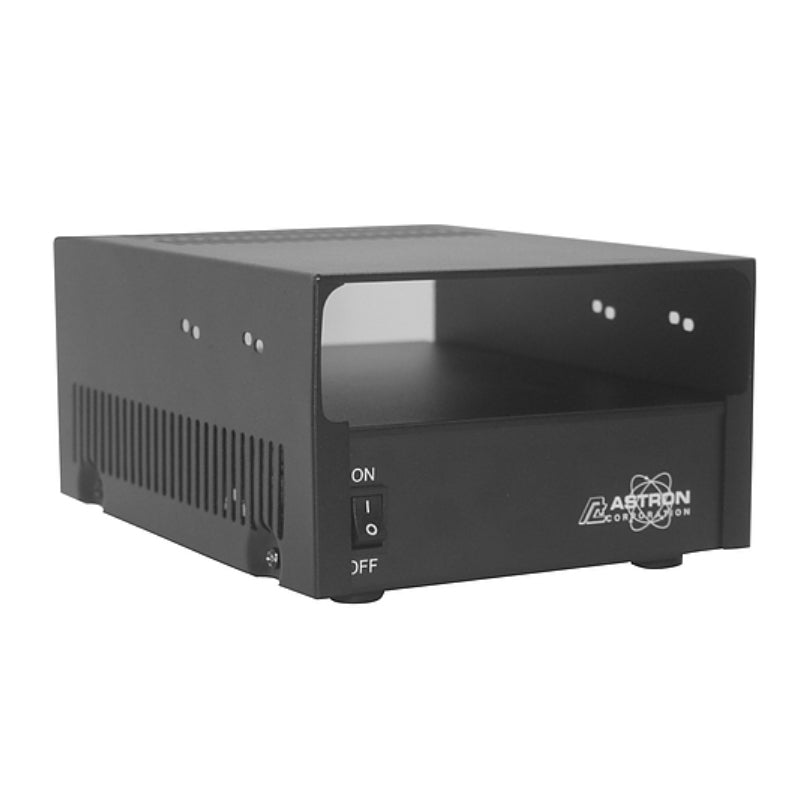

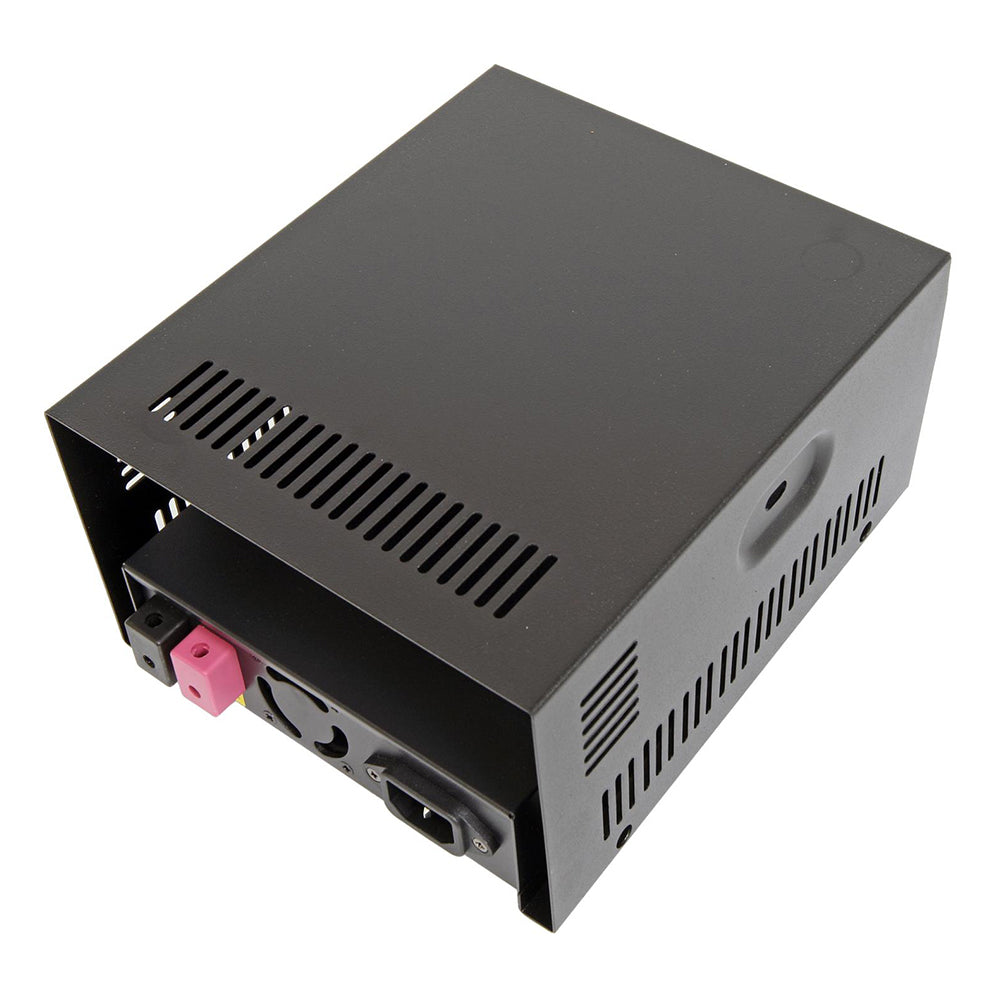

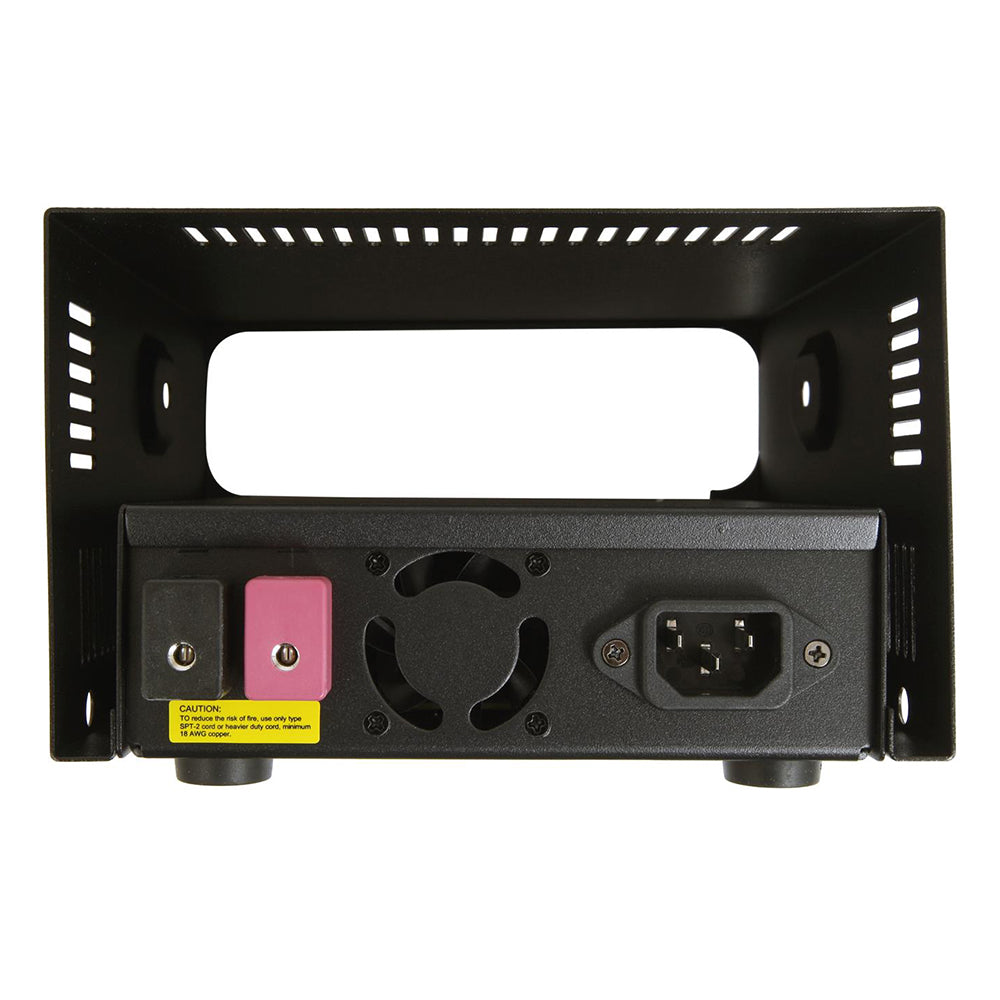

SS-10TK/7180 Base Supply w/Cabinet For KENWOOD TK7180, TK8180, TK7160, TK8160 up to 25 Watts
Product Description
10 Amp Power Supply
Input Voltage (VAC)
115 Volts AC
Output Voltage (VDC)
13.8 Volts DC
Amperage (Cont.)
7
Amperage (Intermittent)
10
Description
Switching power supply. Features current limiting and crowbar over voltage protection.
Ripple Voltage
5 mV
Fold-Back Protection
Yes
Crowbar Protection
Yes
Product Narrative
Astron linear power supplies are heavy duty and solid state electronically regulated.
Warranty
1 yr
