Description

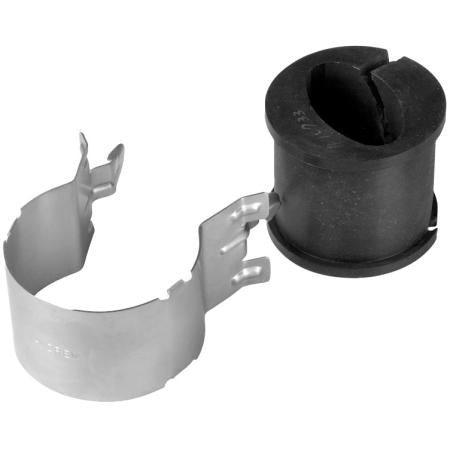

The Andrew EWSH-85 is a stainless steel snap-in hanger designed to secure Andrew HELIAX EW85 elliptical waveguide to telecommunications tower cable ladders and supporting structures.
The hanger installs into a standard 3/4-inch mounting hole and holds one waveguide transmission line without requiring separate fastening hardware for the snap-in connection.
Its stainless steel construction provides corrosion resistance for outdoor installations.
The hanger is designed specifically for EW85 waveguide, used in microwave communications systems operating from 8.5 to 9.8 GHz.
Typical applications include telecommunications towers, microwave backhaul installations, and point-to-point radio systems.
Technical Specifications
|
Specification |
Description |
|---|---|
|
Manufacturer |
Andrew / Amphenol |
|
Former Brand |
CommScope |
|
Part Number |
EWSH-85 |
|
Product Type |
Snap-In Waveguide Hanger |
|
Compatible Waveguide |
EW85 Elliptical Waveguide |
|
Waveguide Size |
WR90 / WG16 / R100 |
|
Mounting Hole |
3/4 inch |
|
Hanger Material |
Stainless Steel |
|
Color |
Silver |
|
Cables per Hanger |
1 |
|
Compatible Diameter |
1.05–1.22 inches |
|
Length |
3.23 inches |
|
Width |
2.01 inches |
|
Height |
1.61 inches |
|
Operating Temperature |
-40°F to +185°F |
|
Return Loss Effect |
0.1 dB |
|
DTF Effect |
0.1 dB |
|
Packaging Quantity |
10 hangers |
|
Packaged Weight |
3.527 lbs |
