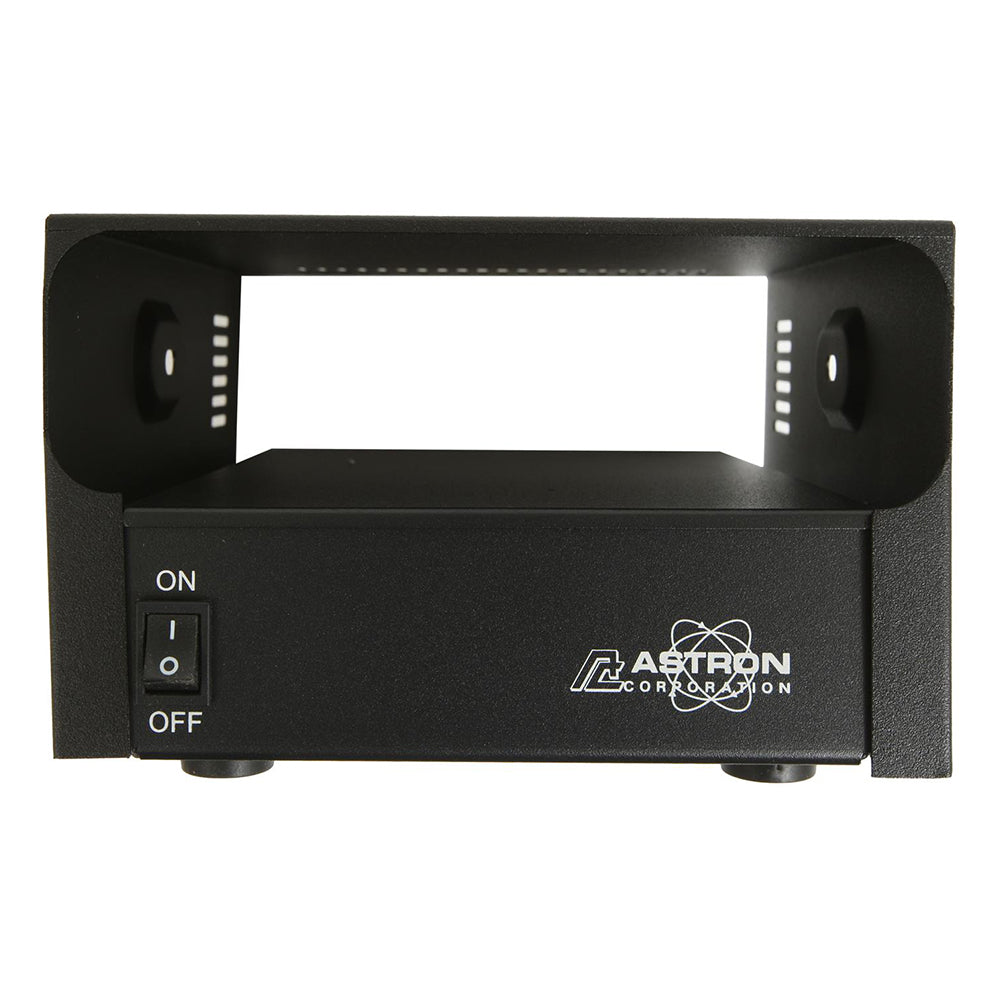

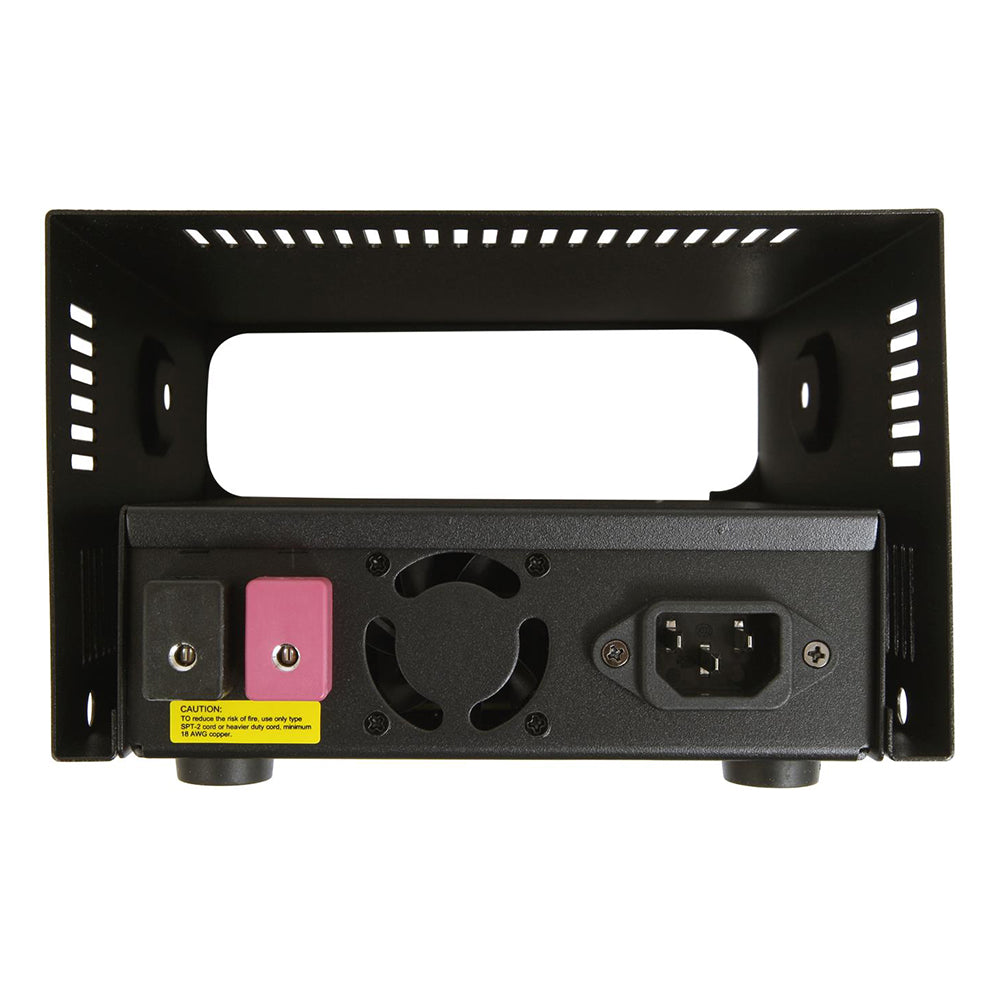

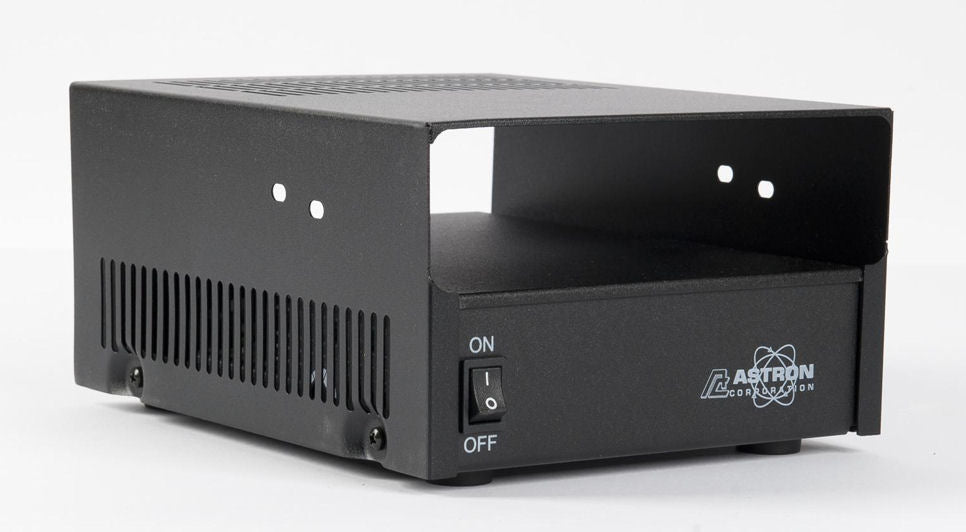

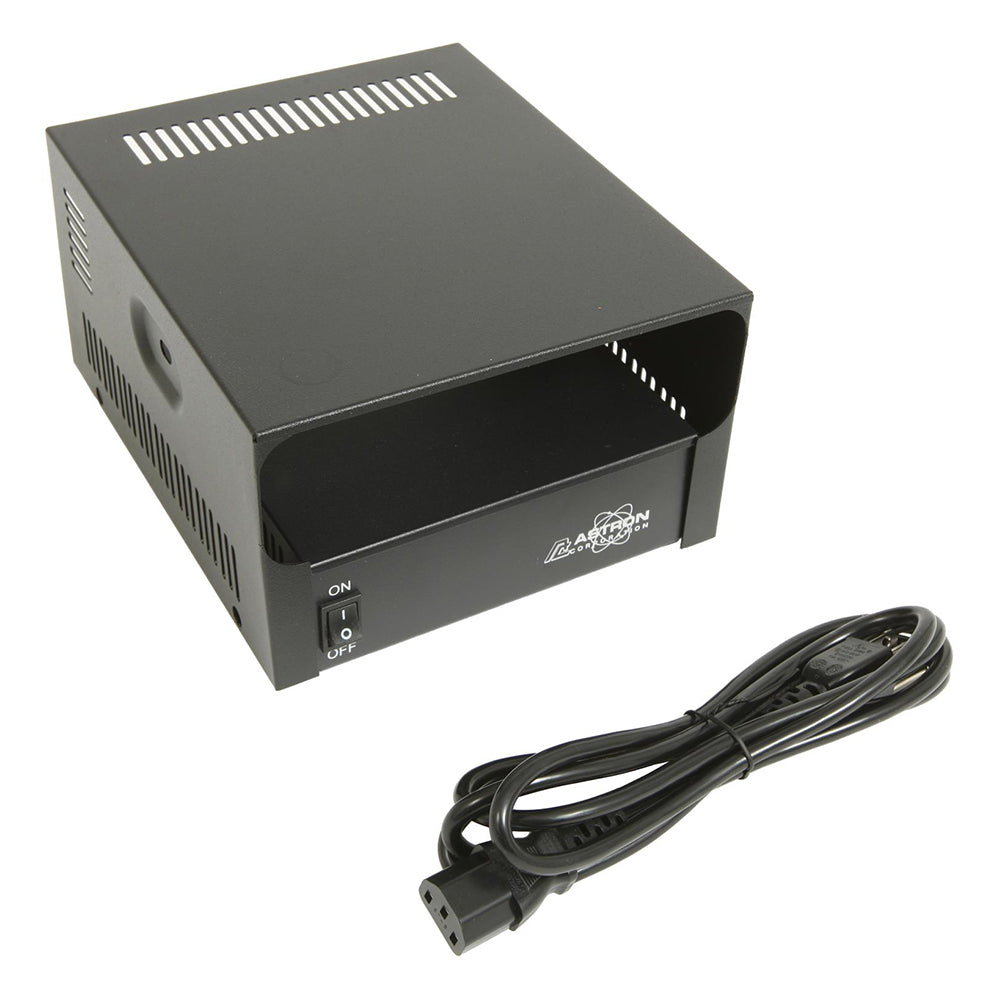

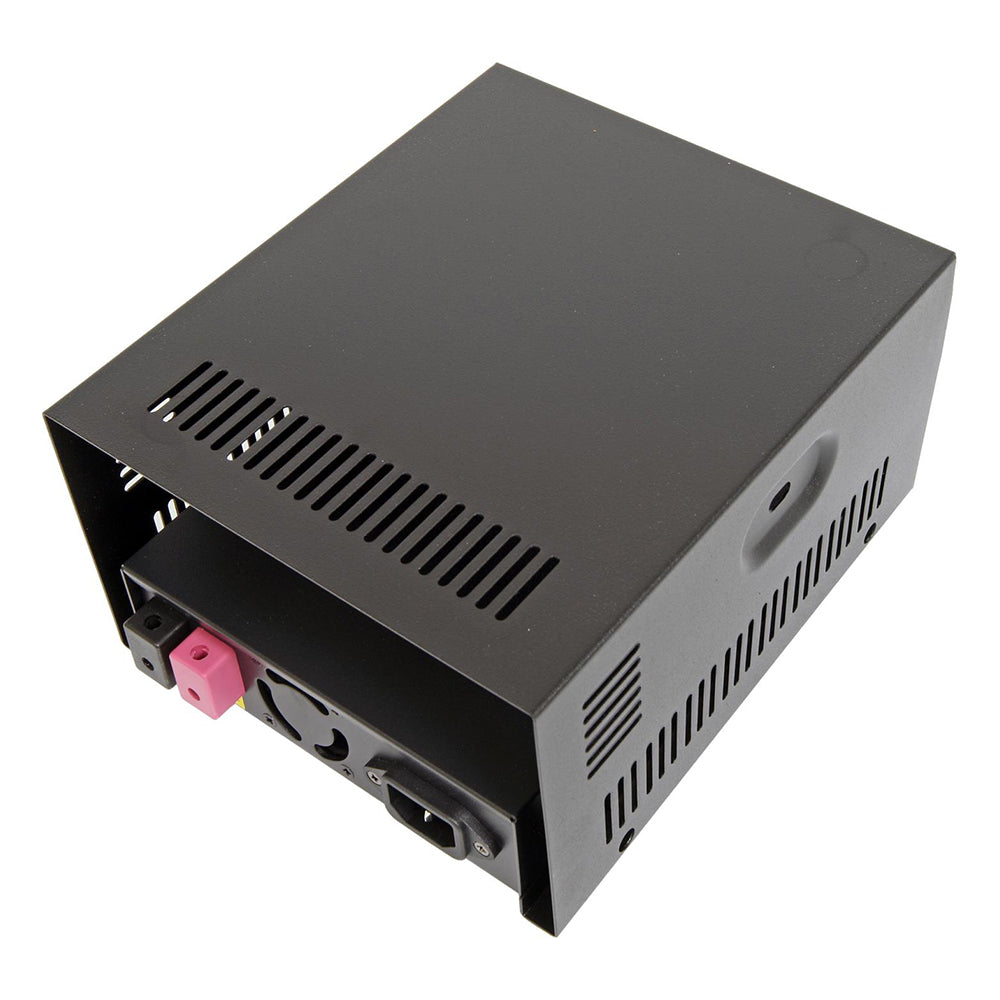

Astron SS-12XTL
MPN SS-12XTLSKU 1849Product type Switching Power Supply
Regular price
$15995
Unit price
Key Specifications
- Output Voltage
- 13.8V
- Continuous Amps
- 10A
- Supply Type
- Switching
Product details
Manufacturer
Astron
Model #
Motorola XTL5000, APX8500(Up to 25 Watts)
Product Description
10 Amp Power Supply
Input Voltage (VAC)
115 Volts AC
Output Voltage (VDC)
13.8 Volts DC
Amperage (Cont.)
10
Amperage (Intermittent)
12
Description
Switching power supply. Features current limiting and crowbar over voltage protection.
Ripple Voltage
5 mV
Fold-Back Protection
Yes
Crowbar Protection
Yes
Product Narrative
Astron linear power supplies are heavy duty and solid state electronically regulated.
Warranty
1 yr
