Commscope CMAX-EXT-43-I53
Regular price
$78995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
CommScope
Model #
CMAX-EXT-43-I53
Product Description

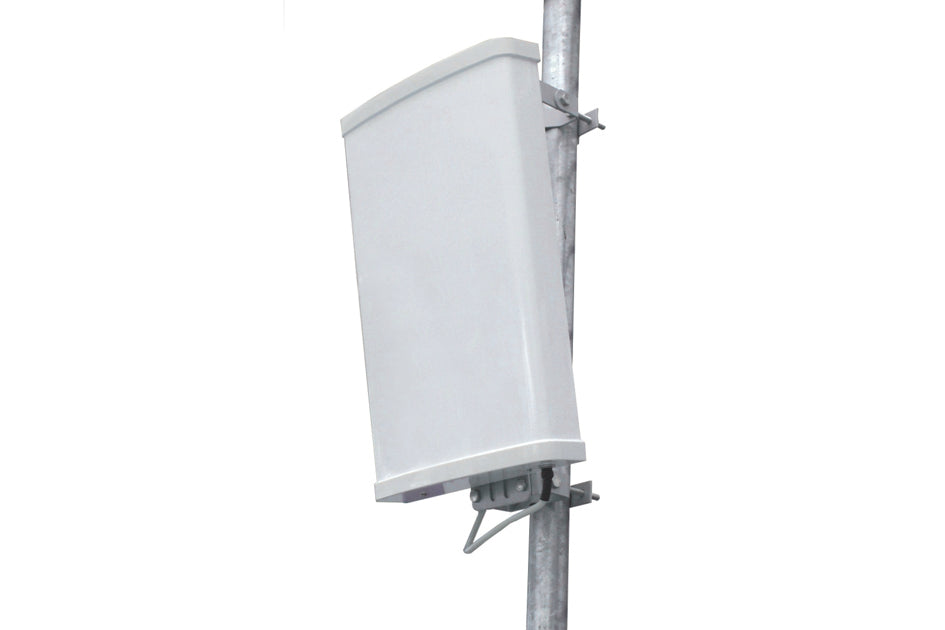

CommScope's 698 - 960, 1710 - 2700 MHz Cell-Max Low PIM directional outdoor SISO antenna. This RAL 9016 white antenna with 4.3-10 Female connector has an operating temperature of -40 deg. F to +140 deg. F with a relative humidity up to 100 percent. Specifications include vertical polarization, 50 Ohm along with a PVC, UV resistant radome material.
Mounting: Poles between 25 - 60 mm with supplied clamps
Meets RoHS and REACH-SVHC compliance and is designed, manufactured and/or distributed under ISO 9001:2015
Horizontal Beamwidth
68 deg, 60 deg, 60 deg, 52 deg
Gain dBi (dBi)
10.0 dBi, 11.0 dBi, 11.0 dBi, 11.0 dBi
Maximum Power (W)
100
Antenna Mounting Style
Mast
PIM Minimum
-153 dBc
Polarization
Vertical
RF Connectors
4.3-10 Female
Vertical Beamwidth (Deg)
30, 28
Specific Frequency
698-800 MHz, 800-960 MHz, 1710-2200 MHz, 2200-2700 MHz
