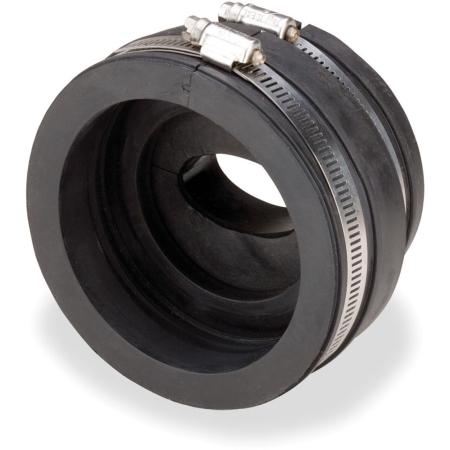

The Andrew WGB5-37 is a 5-inch weather-resistant rubber cable entry boot assembly specifically designed for Andrew HELIAX EW37 elliptical waveguide.
It is used to seal the opening where an EW37 waveguide enters a communications shelter or equipment building through a compatible wall or roof entrance panel.
The assembly consists of a black EPDM rubber boot and a single-opening cushion that fits around the waveguide, helping prevent moisture, dust, and other contaminants from entering the building.
The manufacturer specifies IP66 weather-resistance testing and UV-resistance testing for outdoor telecommunications installations.
Technical Specifications
|
Specification |
Description |
|---|---|
|
Manufacturer |
Andrew / Amphenol |
|
Former Brand |
CommScope |
|
Part Number |
WGB5-37 |
|
Product Type |
Waveguide Entry Boot Assembly |
|
Compatible Waveguide |
EW37 Elliptical Waveguide |
|
Associated Waveguide Size |
WR229 / WG11 / R40 |
|
Boot Diameter |
5 inches (127 mm) |
|
Boot Length |
3 inches (76.2 mm) |
|
Openings per Cushion |
1 |
|
Material |
EPDM Rubber |
|
Color |
Black |
|
Weather Resistance |
IP66 tested |
|
UV Resistance |
MIL-STD-810E specified test |
|
Included |
Rubber Boot and Cushion |
|
Package Quantity |
1 assembly |
|
Packaged Weight |
0.551 lb (0.25 kg) |
