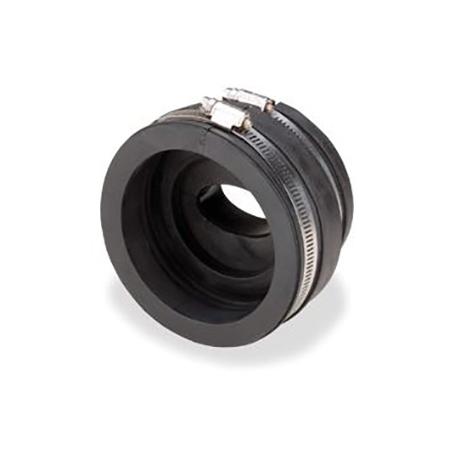

The Andrew WGB4-43 is a 4-inch weather-resistant cable entry boot assembly designed specifically for Andrew HELIAX EW43 elliptical waveguide.
The assembly consists of a black EPDM rubber boot and an internal cushion with one opening sized to accommodate EW43 waveguide.
It is used with compatible 4-inch wall or roof cable entrance panels to seal the opening where a waveguide enters a telecommunications shelter, equipment building, or other enclosure.
The rubber boot helps prevent rainwater, dust, and other environmental contaminants from entering the building around the waveguide.
Technical Specifications
|
Specification |
Description |
|---|---|
|
Manufacturer |
Andrew / Amphenol |
|
Former Brand |
CommScope |
|
Part Number |
WGB4-43 |
|
Product Type |
Waveguide Cable Entry Boot Assembly |
|
Boot Size |
4 inches |
|
Compatible Waveguide |
EW43 / EWP43 family |
|
Associated Waveguide Size |
WR187 / WG12 / R48 |
|
Cable Openings |
1 |
|
Material |
EPDM Rubber |
|
Color |
Black |
|
Width |
4 inches (101.6 mm) |
|
Length |
3 inches (76.2 mm) |
|
Weather Resistance |
IP66 tested |
|
Included |
Boot and Cushion |
|
Package Quantity |
1 Assembly |
|
Packaged Weight |
0.551 lb |
