Commscope HX10-4-6GF
Regular price
$15,61495
Unit price
Shipping calculated at checkout.
Freight: this item requires LTL shipping
Description
Description
Manufacturer
CommScope
Model #
HX10-4-6GF
Product Description

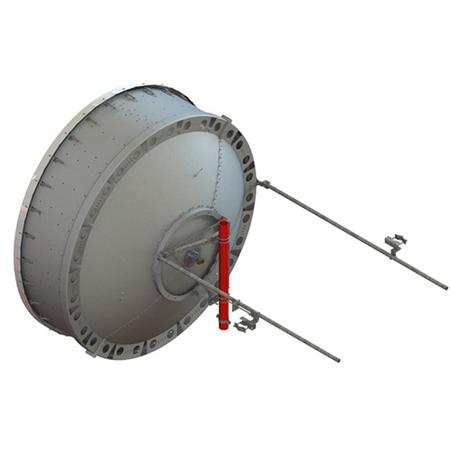

COMMSCOPE 3.0m, 10ft ValuLine High Performance, High XPD Antenna, dual-polarized, 4.400 -5.000 GHz, grey, CPR187G flange
Item Weight
513 kg | 1130.97 lb
Item Width
1930 mm | 75.984 in
Item Length
3410 mm | 134.252 in
Item Height
1170 mm | 46.063 in
Polarization
Dual
Color
Gray
Specific Frequency
4.400 – 5.000 GHz
Diameter
10 ft
Gain, High
41.1dBi
Gain, Middle
40.6dBi
Gain, Low
40dBi
Maximum Rated Wind Velocity
200 km/h | 124.274 mph
Maximum VSWR
1.5
Minimum Front Back Ratio
68dB
Number of Struts Included
2
Radome Included
Yes. Gray with flash
Type of Hardware Included
Compatible Mounting Pipe Diameter 115 mm | 4.5 in
Return Loss
23dB
Wind Loading (sq-ft)
78.57 sq. ft.
