Manufacturer
CommScope
Model #
LLPX310R-V1
Product Description

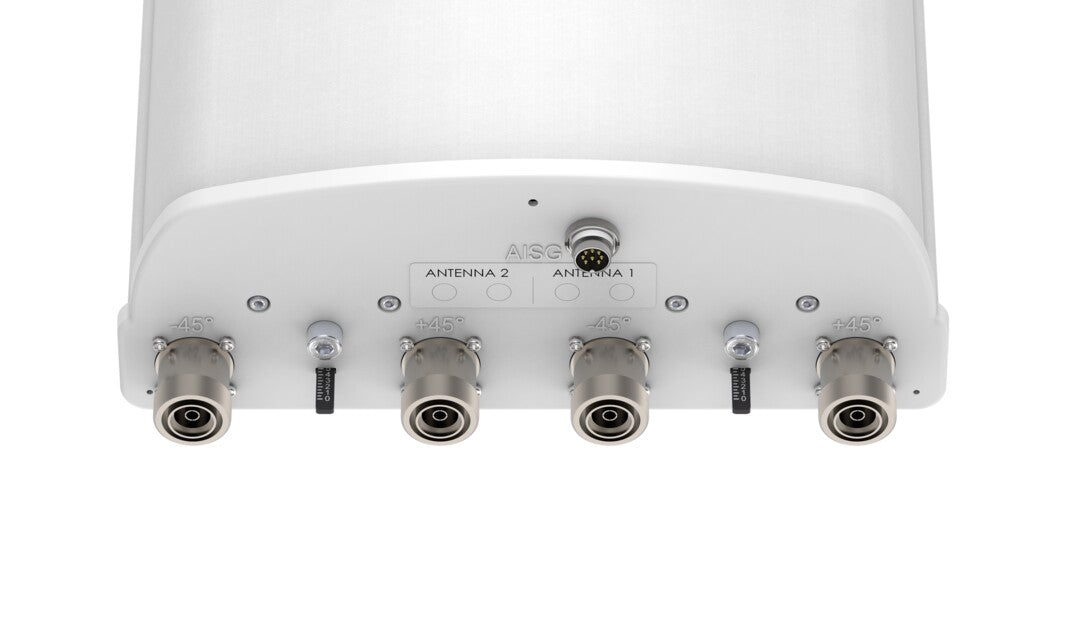

COMMSCOPE 4-port sector antenna, 4x 2300–2700 MHz, 65° HPBW, 2x RET with manual override
Item Width
11.811 in
Item Height
4.528 in
Item Length
42.402 in
Item Weight
28.660 lb
Horizontal Beamwidth
65 degrees (2300-2500), 63 degrees (2500-2700)
Gain dBi (dBi)
17.2 (2300-2500), 17.8 (2500-2700)
Maximum Power (W)
250
Polarization
±45°
RF Connectors
7-16 DIN Female
Number of Connections
4
Maximum Rated Wind Velocity
200 km/h (124 mph)
Vertical Beamwidth (Deg)
7 degrees (2300-200), 6.5 degrees (2500-2700)
Maximum VSWR
1.43
Connector Placement
Bottom
Electrical Downtilt
0–10 degrees
Frequency Band
2300 – 2700 MHz
